High Temperature & Hot Gas Fans
Reinforced, Medium Pressure Fans for High Temperature Industrial Applications

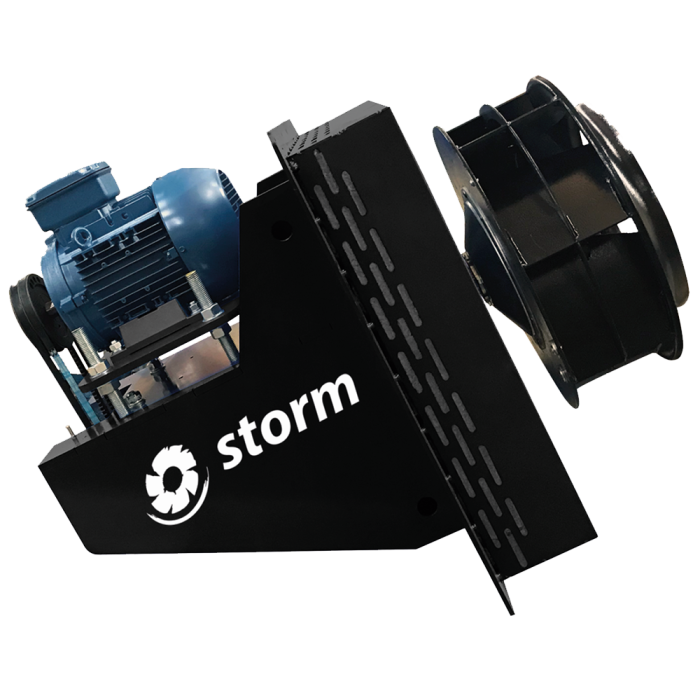

A wide range of high temperature fans and hot gas fans designed to handle temperatures up to 350°C. Featuring motors located out of the high temperature zone with in-built protection against shaft transmitted and/or radiated heat. In larger sizes, belt drive can make the motor even less vulnerable to the heat, which then only reaches the impeller bearing.
Ideal for Heavy Duty Applications
The heavy duty range of industrial fans by Casals, offer robust design features and can provide longevity in harsh industrial applications facing extreme temperatures.
•Hot air circulation within packaging equipment
•Printing dryers
•Food Processing & Manufacturing
•Biomass, Biofuel & Renewable Energy
•Industrial washing machines
•Kilns
•Industrial and laboratory ovens
•Environmental cabinets
•Laboratory incubators
•Boilers
•Paint booths
•Incinerators and burners
•Melting furnaces
•Drying of tobacco, barley, ceramics, glass and wood
•Insulated thermal cameras subjected to temperature control
•Other hot gas transportation
Technical Data
The RS range of inline duct fans housing is manufactured using polyamide PA6 reinforcd with 15% glass fibre. A material characterised by high rigidity, hardness, durability and high mechanical strength. It's ability to absorb vibration and impact resistance adds to it performance enhancing features, making it the ideal noise optimised unit for axial air flow, high efficiency and low noise applications such as industrial, horticultural and electronic ventilation.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
