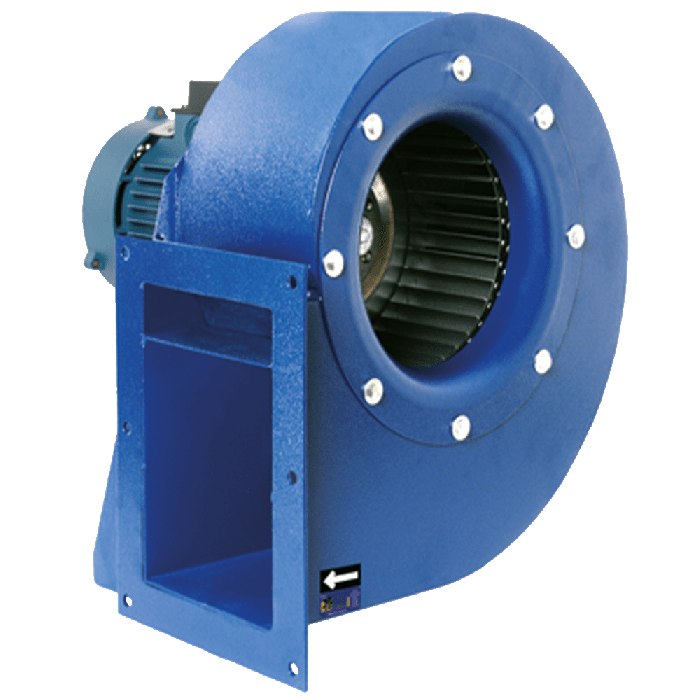

MB Medium Pressure Centrifugal Fans

MB Medium Pressure Centrifugal Fans

Versatile Medium Pressure Fans Available in Standard or ATEX versions

Manufacturing Features:
Centrifugal fan with a reinforced, welded housing made with rolled steel sheet.

Simple impeller manufactured of steel sheet and reinforced with a welded ring protected with a polyester powder finishing coat.
Asynchronous squirrel-cage motor with IP-55 protection and rated class F insulation. Standard voltages: 230/400V 50Hz for 3~ motors up to 4kW and 400/690V 50Hz for higher powers.
Standard orientation: LG270.

Industrial centrifugal fans with reinforced steel casing

Designed for Inline Installation in Medium Pressure Applications

The MB and MB P/R series of centrifugal fans feature a forward curved impeller and are ideal for the extraction or injection of air, cooling of machines and parts and transporting totally clean air without dust. The MB P/R series of material handling fans are suitable for solid material transport (except for textile fibres) in food processing, biomass and other industrial applications. ATEX versions are available on request.

High Efficiency and Durable Impellers

Offering durability and enhanced corrosive resistance in harsh environments, the MB and the MB P/R fans feature reinforced housing and impellers. The maximum working temperature of carried air is up to 130°C and up to 60°C for ambient air.

Available Fan Types

MB: Medium pressure centrifugal fan with forward curved impeller

MB P/R: Medium pressure centrifugal material handling fan with a radial straight impeller

MBX: Medium pressure centrifugal fan with forward curved impeller, ATEX rated.

Suitable Applications

Designed for inline installation, they are suitable for:
•Solid material transport (except for textile fibres)
•Maximum working temperature: carried air: 130ºC, ambient: 60ºC

Available on Request

•Special voltages
•2 speed motors (3~ motors)
•Fan for air working temperatures up to 250ºC with R/R (cooling impeller)
•Orientation: LG0, LG 45, LG 90, LG 135, LG 180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD 270, RD315
