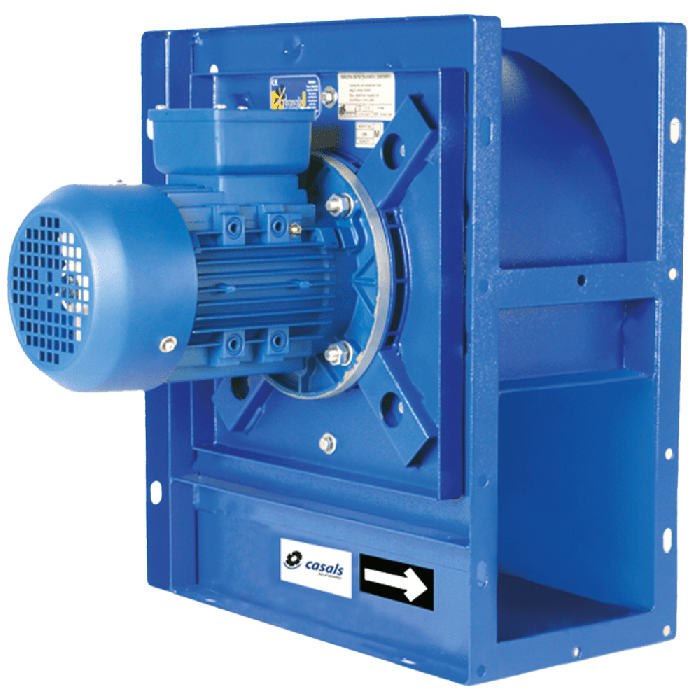

MBC High Temperature Centrifugal Fans

MBC High Temperature Centrifugal Fans

Driven by Motors Located Out of the Air-Stream

Manufacturing Features:
Centrifugal fan with reinforced housing made of steel sheet, fully welded (internally and externally). Finished with a p
olyester powder coating.
Simple inlet forward curved reinforced impeller made of galvanised sheet.
Standard asynchronous squirel-cage motor with IP-55 protection and rated class F insulation. Manufactured with standard voltages: 230V 50Hz for 1~ motors, 230/400V 50Hz for 3~ motors up to 4kW and 400/690V 50Hz for higher powers.
Standard orientation: LG270.

MBC centrifugal fans featuring forward curved impellers and cubic casing are

Suitable for the Movement of Clean Air in High Temperature Applications

The MBC series is designed for inline installation and suitable for clean air transportation in applications such as hot air exhaust in ovens or facilities with high temperatures. The maximum working temperature of carried air is up to 250ºC.

Designed to Withstand Harsh Conditions

Designed to withstand harsh conditions, MBC fans feature a reinforced fan housing, made of rolling sheet steel, completely welded internally and externally with a polyester powder finishing coat. Its simple inlet forward curved impeller is made of reinforced galvanised sheet steel.

Available Fan Types

MBC: Centrifugal fan with forward curved impeller and cubic casing

Suitable Applications

Designed for inline installation, they are suitable for:
•Hot air exhaust in ovens or facilities with high temperatures
•Suitable for transporting totally clean air without dust
•Maximum working temperature: carried air: 250ºC, environment: 1~ 50ºC, 3~ 60ºC

Available on Request

•2 speed motors (3~ motors)
•Orientation: LG270, LG0, LG90, LG180, RD0, RD90, RD180, RD270

Technical Data

The MBC and MBRC series are paired with a standard asynchronous squirrel-cage motor manufactured with standard voltages: 230V, 50/Hz for single phase motors, 230/400V, 50Hz for three phase and motors up to 4kW and 400/690V 50 Hz for higher powers.

Fan Type Voltage
(V)
Frequency
(Hz)
Input
Power (kW)
Rated
Current (A)
Speed
(rpm)
Max Temp
(°C)
IP Rating
(IP)
GKHM 355-CIG.102.5HF IE Gen3 (IE5) 3~ 380-480 50 / 60 2.33 3.7 at 400V 3120 40 IP54
GKHM 400-CIG.114.6FF IE Gen3 (IE5) 3~ 380-480 50 / 60 4.48 7 at 400V 3170 40 IP54
GKHM 450-CIG.128.6IF IE Gen3 (IE4) 3~ 380-480 50 / 60 5.9 9.05 at 400V 2950 40 IP54
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 7.48 11.4 at 400V 2625 40 IP54
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 6.85 10.7 at 400V 2125 40 IP54
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 5.1 7.88 at 400V 1580 40 IP54
