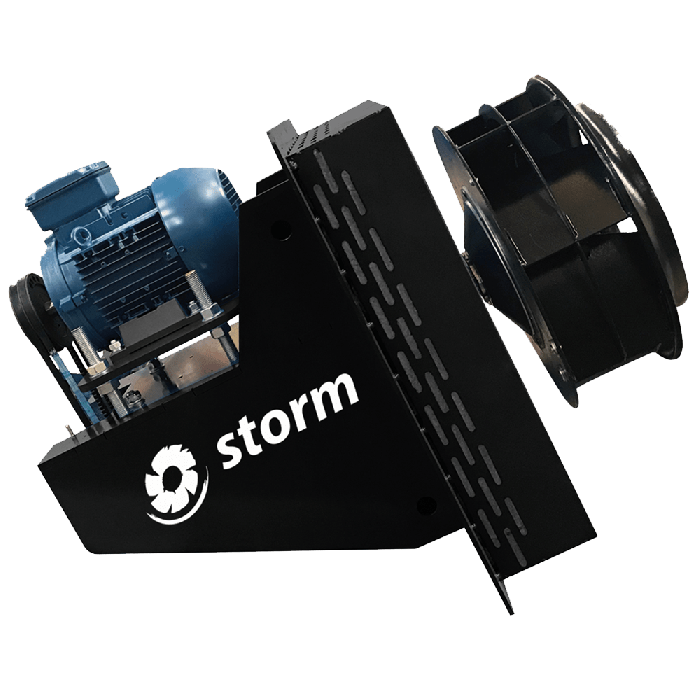

CLIBOS High Temperature Fans
Direct Driven Centrifugal Medium Pressure Plug Fan for High Temperatures
Manufacturing Features:
Insulated casing made of carbon laminated steel with a powder polyester coating for enhanced corrosion resistance. Finish C3.
Thermal insulation with high density rock wool, 145Kg/m3, thickness 50mm.
Self-cleaning and reinforced impeller with high performance backward (reaction) blades made of carbon laminated steel, dynamically balanced to minimise noise and vibrations and painted with a black heat-resistant paint coating.
Motor with flange (B5).
Maximum continuous working temperature ambient (motor): 60ºC.
Suitable for the continuous transfer of gases from -40ºC to 350ºC.
Integrated cooling impeller.
Squirrel cage standardised asynchronous IEC motor for continuous operation (S1), offering IP-55 protection and Class F electrical insulation. Manufactured with standard voltages as follows, 230/400V 50Hz for 3~ motors up to 4kW and 400/690V 50Hz for higher powers.
Offers C3 Rated Corrosion Protection
CLIBOS high temperature fans feature a black heat-resistant paint coating finish, rated C3 for its corrosion resistance. They are suitable for areas with high humidity and air pollution.
CLIBOS: Medium pressure centrifugal plug fan with backward curved impeller, for temperatures up to 250ºC.
CLIBOS - TR: Medium pressure centrifugal plug fan with backward curved impeller, for temperatures up to 350ºC.
•Ovens
•Boilers
•Paint booths
•Incinerators and burners
•Melting furnaces
•Drying of tobacco, barley, ceramics, glass and wood
•Insulated thermal cameras subjected to temperature control
⦁Fans for special voltages
⦁2 Speed motor, Inox 304 or Inox 316
⦁Sparking proof construction
⦁Other sizes
⦁Other motors according to customer requirement
Technical Data
CLIBOS fans are paired with a standardised asynchronous IEC motor manufactured with standard voltages: 230/400V 50Hz for three phase motors Up to 4kW and 400/690V 50Hz for higher powers. Motors offer IP-55 protection and Class F electrical insulation.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
