EC Plug Fans with G Impeller

EC Plug Fans with G Impeller

Quartz Grey Metal Plug Fans Optimised for High Pressure Applications

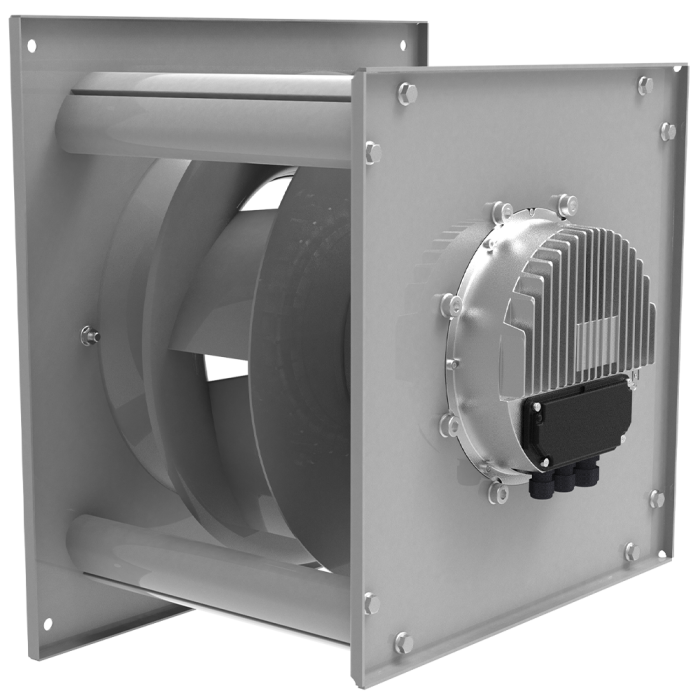

The G series offers a range of high efficiency, high pressure backward curved metal plug fans with generation 3 EC motors. Optimised for extremely high pressure applications, the G series is available in 3~ versions from stock or on short lead times.

G series plug fans featuring backward curved profiled blades offer constant volume and are

Highly Optimised for Sensitive Market Applications

Combined with electronically commutated motors (EC-motors), G series plug fans form a very compact, efficient and optimised fan unit. The high pressure optimised impeller is manufactured from sheet steel metal coated in quartz grey and features 6 backward curved, profiled blades and efficiency optimised diffuser wheel.

G Series Impellers Impress with a Low Depth for Simple Installation

The G-Series range of modular plug fans impresses with a low depth for simple installation, and fast start-up is ensured because of well integrated components.

Generation 3 Motor

100% speed controllable, the generation 3 EC motor available on 3~ fans, automatically adjusts to the actual input power across the entire range, allowing reduced inventory cost and easier design-in. The 3~ 50-60Hz motors are rated IP54 and UL-R motor class F. Gen 3 motors are 30% more powerful than previous versions.

The operating temperature range is -25C to +40C at full speed.

Gen 3 motors exceed in accordance with IEC 60034-30-2 minimum requirements for IE5 ultra premium efficiency.

Suitable Applications

G series plug fans are ideal for sensitive high pressure applications such as AHU's, containment and clean rooms.

Technical Data

As standard, the motors input voltage range is 200-480 VAC (50/60Hz) and offers additional uprades such as integrated inspection LED to visualise the motors condition, improved ModBus RTU functionality, electronic quick change technology (EQC) and IT network support. The maximum electrical input power is 4.7kW.

Fan Type Voltage
Power (kW)
Current (A)
Max Temp
IP Rating
GKHM 355-CIG.102.5HF IE Gen3 (IE5) 3~ 380-480 50 / 60 2.33 3.7 3120 40 IP54
GKHM 400-CIG.114.6FF IE Gen3 (IE5) 3~ 380-480 50 / 60 4.48 7 3170 40 IP54
GKHM 450-CIG.128.6IF IE Gen3 (IE4) 3~ 380-480 50 / 60 5.9 9.05 2950 40 IP54
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 7.48 11.4 2625 40 IP54
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 6.85 10.7 2125 40 IP54
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 5.1 7.88 1580 40 IP54
