STORM Corrosion Resistant Polypropylene Fans (High Pressure)
Chemical Resistant Polypropylene Fans for High Pressure Fume Applications
The STORM series is a collection of high density polypropylene, corrosion resistant centrifugal fans designed to deliver relatively low airflow, under high system pressures.
Engineers choose the STORM series when there is a need to move a smaller volume of air while overcoming increased resistance or pressure gains. Typical fume extraction applications being air filtration, local extraction arms, fume scrubbers and chemical stores.
When you contact us, our technical pre-sales team will guide you to select the best corrosion resistant fan to suit your requirements, chemical use and operating duties.
For lower pressure systems, we recommend the use of the S series.

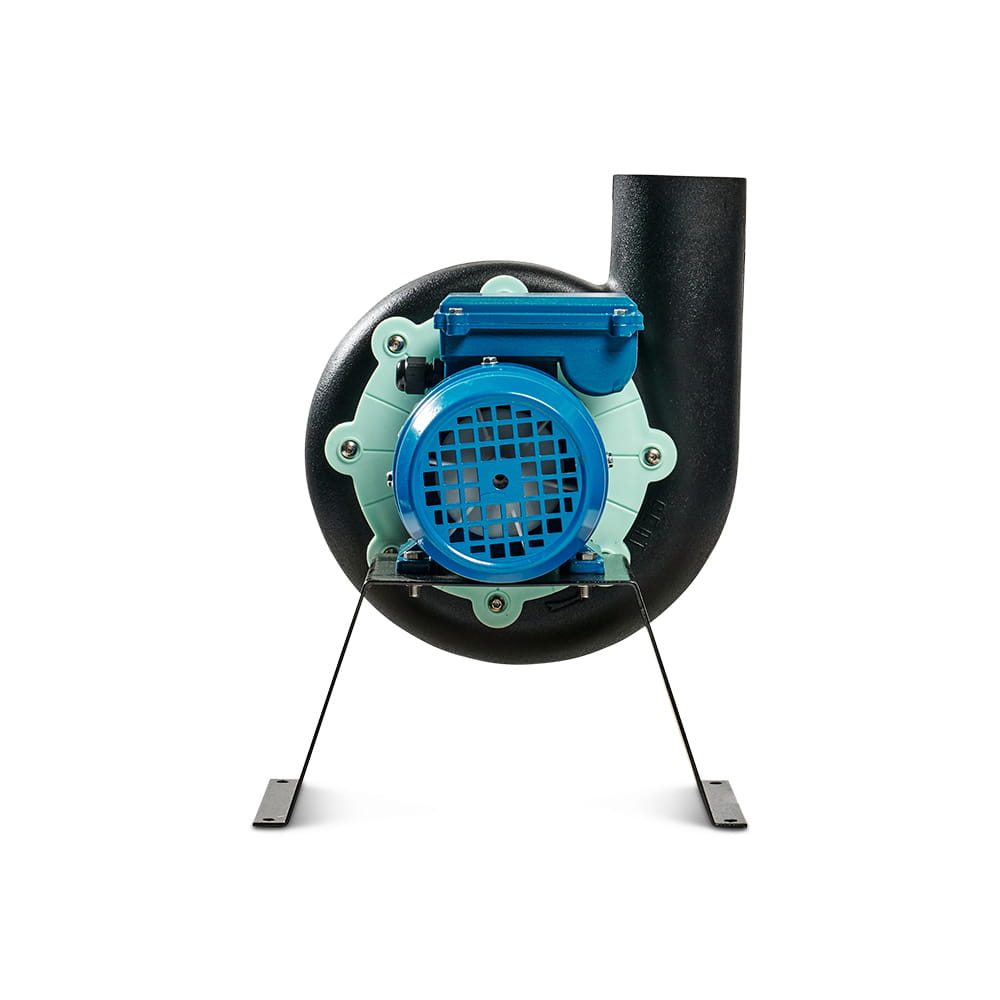

ST10 Corrosion Resistant Fan

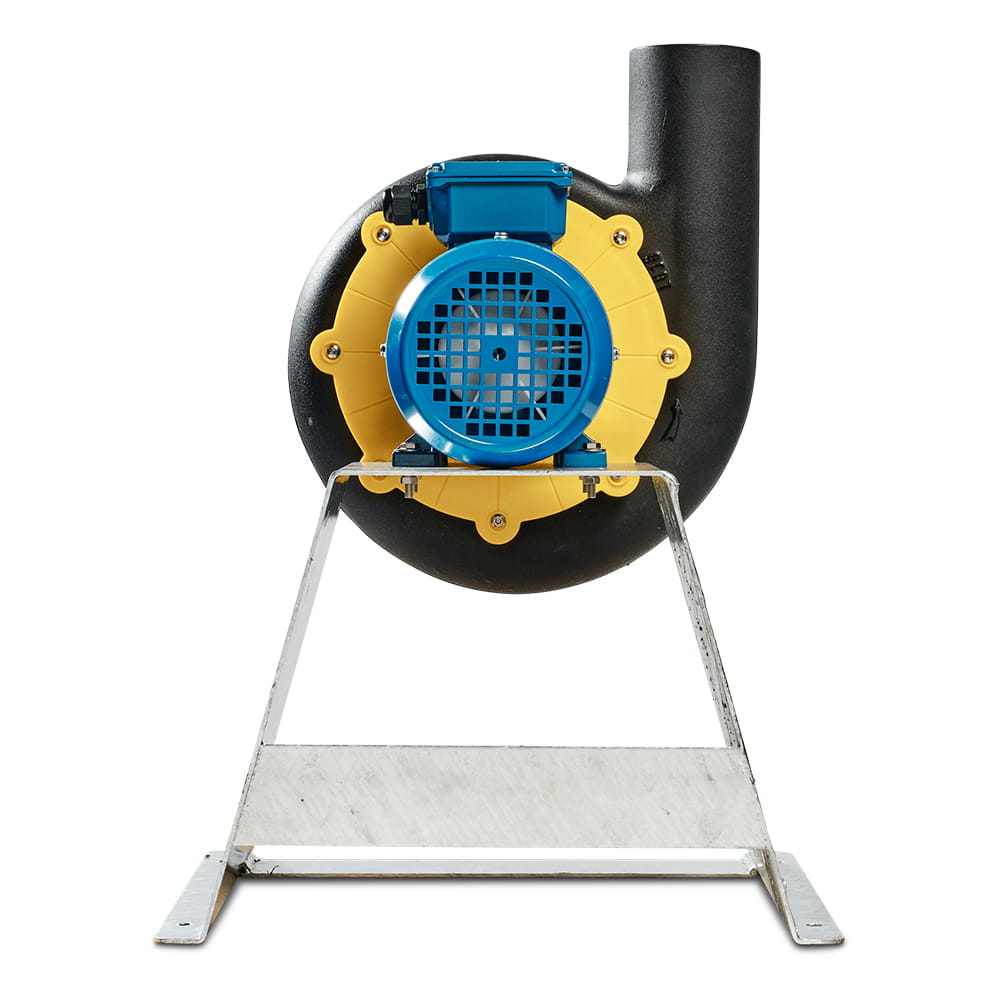

ST12 Corrosion Resistant Fan

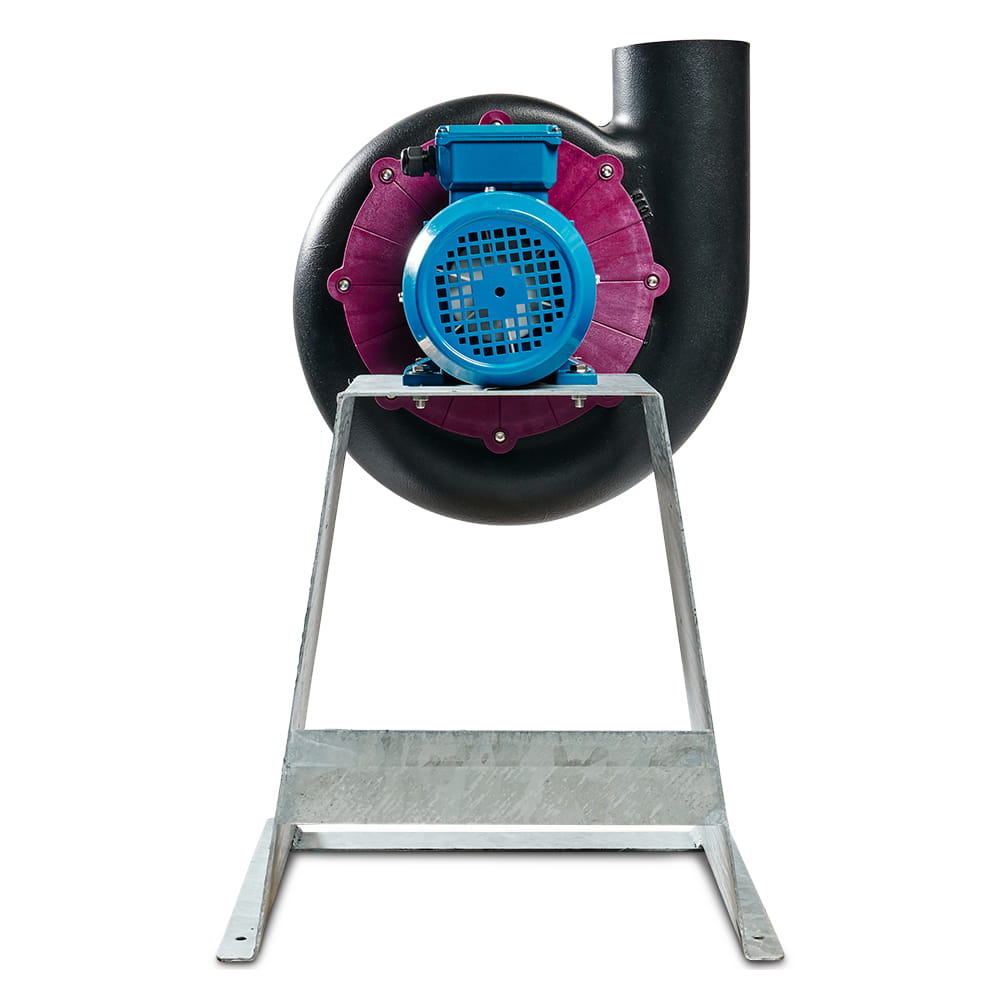

ST14 Corrosion Resistant Fan

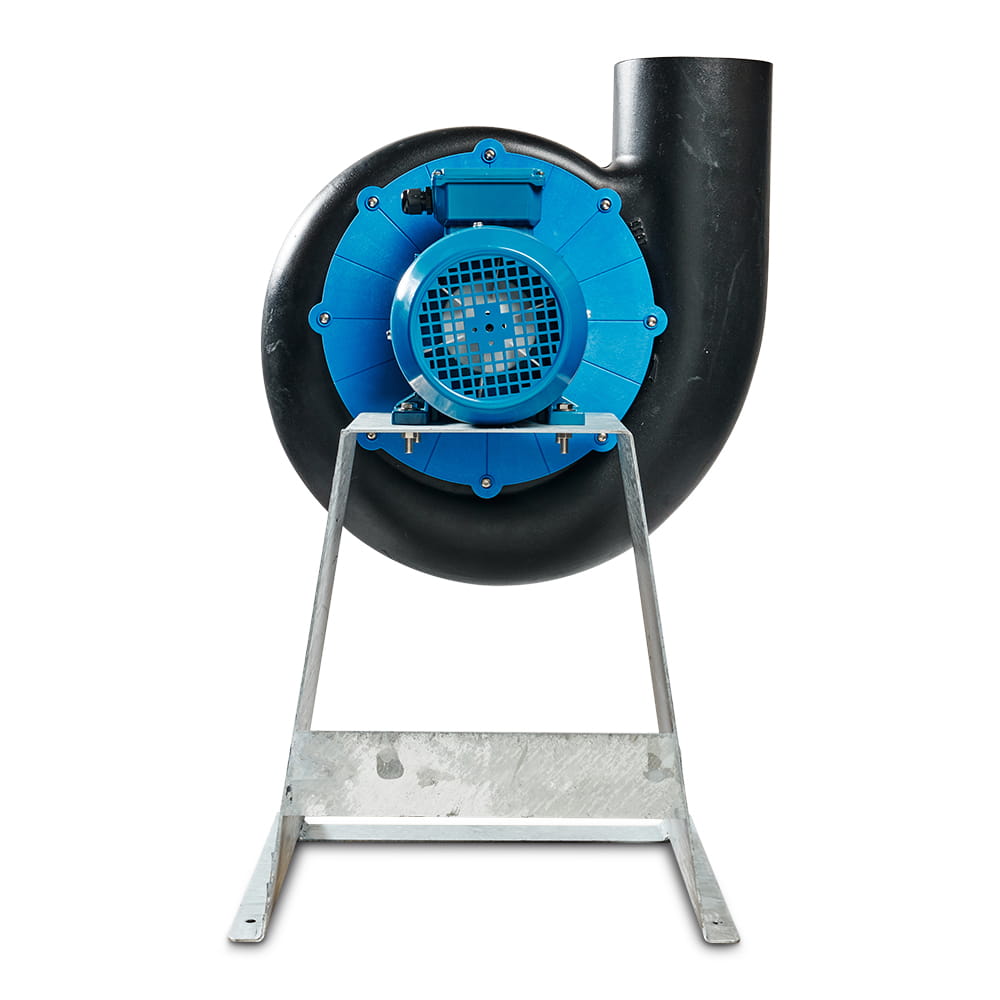

ST16 Corrosion Resistant Fan

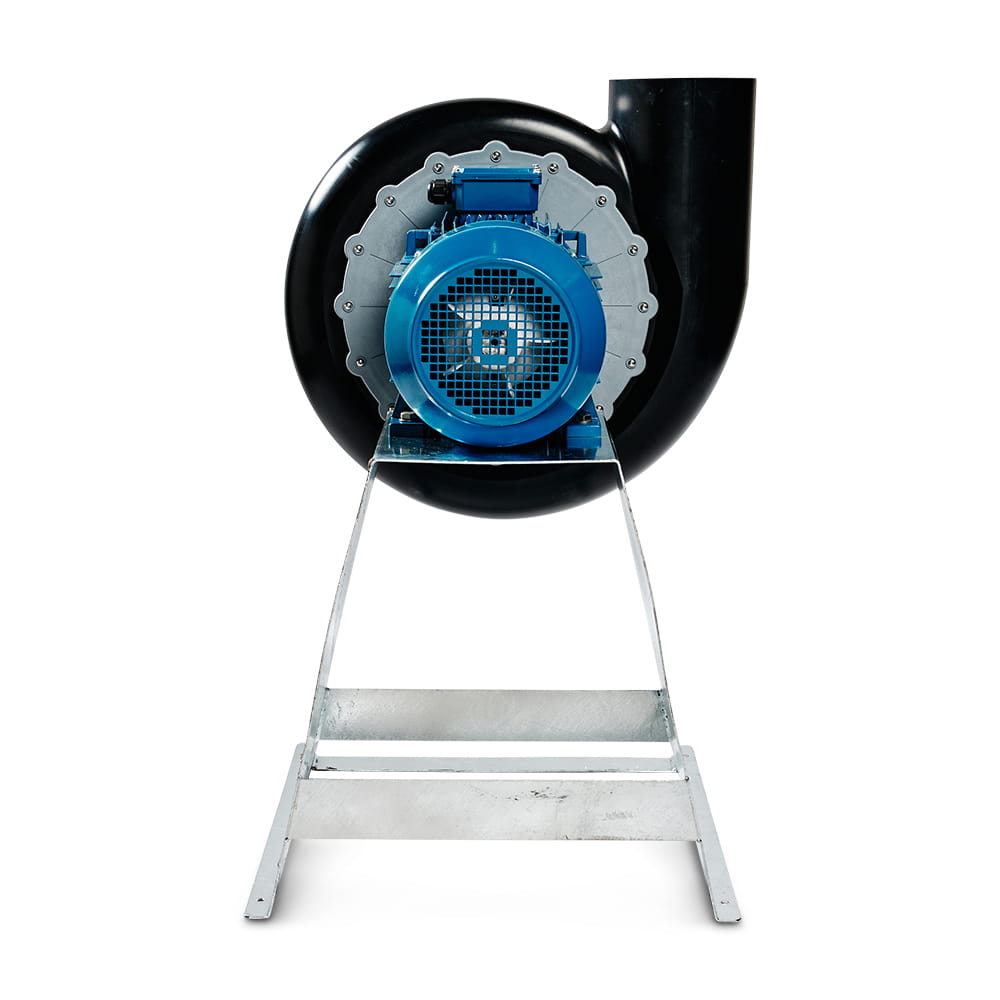

ST18 Corrosion Resistant Fan
ATEX Corrosion Resistant Fan
Extract & Resist the Widest Range of Corrosive and Hazardous Fume
With over 30 years of experience working with SEAT ventilation, Axair supports a large network of UK fume cupboard manufacturers and those within the environmental corrosive fume market with our range of industrial fans. Corrosion resistant fans are supplied with metal or outdoor polypropylene pedestals and are specified to match the exact requirements of the applications operating and performance duty.
•230V 1~ motor
•230/400V 3~ direct-on-line or inverter supplied motor
•400/690V 3~ motors in larger sizes
•Pre-wired electrical isolators
•Motor starters
•Inverter drives
•Airflow controllers
•ATEX motors
•Multiple orientations
•Metal or weather proof box pedestal
•Anti-vibration mountings
•Flexible connectors
•Flange pairs
•Manual dampers
•Drain hose connectors
•ATEX polypropylene/carbon fans
Our customers benefit from short lead times and unrivalled stock availability on an extensive range of fume fans. We‘re confident that our stock and logistics policy enables us to maintain a position that will provide continuity of business and a cost effective solution to industrial corrosion resistant fan procurement.
STORM CORROSION RESISTANT FANS TECHNICAL DATA
The five versatile sizes of high pressure fume extraction fans ST10, ST12, ST14, ST16 and ST18 are used extensively within fume cupboards, environmental chambers, extract arms and process fume extraction.
See below for overview performance data, download full datasheets, or visit each product page to view specifics.
| Model | Speed (RPM) |
Motor Power (kW) |
Motor Frame Size | V (1~) |
1~ (Full Load) |
1~ (Start) |
V (3~) |
3~ (Full Load) |
3~ (Start) |
|---|---|---|---|---|---|---|---|---|---|
| ST10/2 | 2870 | 0.12 | 56" 2p | 230 | 1 | 4 | 400 | 0.5 | 2 |
| ST10/4 | 1450 | 0.09 | 56" 4p | 230 | 1 | 3 | 400 | 0.4 | 2.5 |
| ST12/2 | 2870 | 0.37 | 71" 2p | 230 | 2,8 | 10 | 400 | 1 | 6 |
| ST12/4 | 1450 | 0.25 | 71" 4p | 230 | 2 | 7 | 400 | 1 | 4.5 |
| ST14/2 | 2870 | 1.10 | 80" 2p | 230 | 7 | 30 | 400 | 2.5 | 18 |
| ST16/2 | 2870 | 2.20 | 90L-2 | 230 | 14 | 65 | 400 | 4.5 | 35 |
| ST18 | 2870 | 7.5 | 132" | – | – | – | 400 | 14.3 | 132 |
