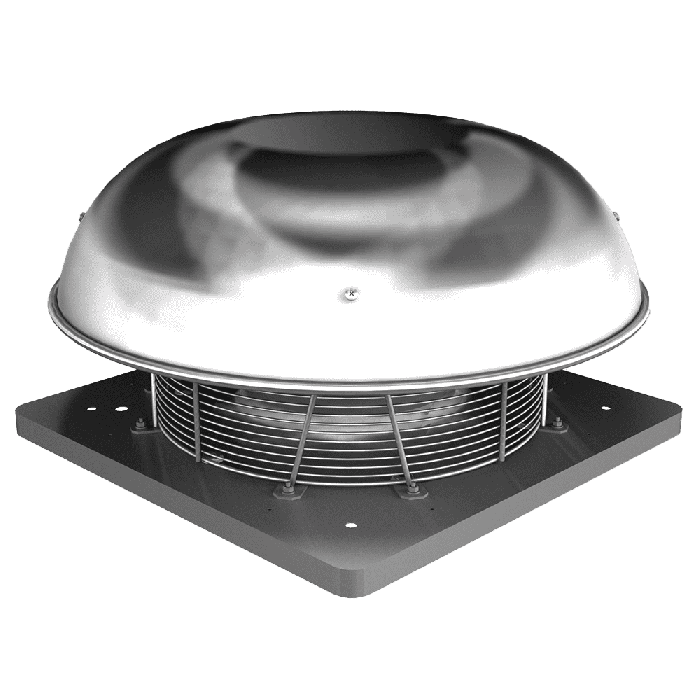

DH Roof Mounted Centrifugal Fans
Available in Standard or ATEX Versions
Manufacturing Features:
Centrifugal fan made of seawater-resistant aluminium.
Base frame with integrated inlet cone made of galvanised steel sheet.
Backward curved impellers made of plastic.
Flow rates up to 15,000 m³/h.
Size: 190 - 630 mm (impeller diameter).
Horizontal outlet.
Solid weatherproof casing.
Easy to install.
Available with Impeller Sizes 190mm to 630mm
DH centrifugal roof fans are fitted with backward curved impellers made of plastic, available in sizes 190mm to 630mm and can provide airflows up to 15,000 m³/h.
DH: Backward curved impellers made of plastic
DHE: Efficiency optimised and sound optimised backward curved impellers from the e series made of plastic
•Warehouse ventilation
•Supermarket ventilation
•Factory ventilation
•Swimming pools ventilation
•Gymnasium ventilation
•Garage ventilation
•Agricultural ventilation
•Stable ventilation
•Farm ventilation
•Commercial building ventilation
•Industrial building ventilation
•Residential building ventilation
•ATEX versions
Technical Data
The DH series can be paired with AC, EC or IEC motor models, all available in sound attenuating versions. AC products are ERP 2016 compliant and the EC models are ERP 2018 compliant. IEC Motor Variations (DVWN) can be operated up to 120 °C as the motor is outside of the airstream. The fans are driven by IEC three phase motors and up to size 450 are suitable for voltage control. From size 500 the fans are controllable with a frequency converter. The motor carrier cage is a plastic coated round wheel and has been created with bird and contact protection.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
