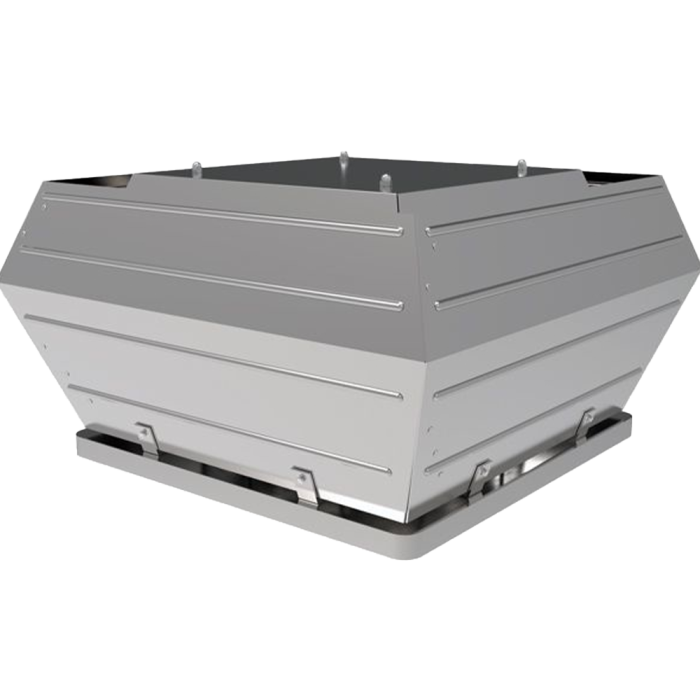

DV Roof Mounted Centrifugal Fans
Available in Standard or ATEX Versions
Manufacturing Features:
Centrifugal fan with backward curved impellers made of plastic.
Solid weatherproof casing made of seawater-resistant aluminium.
Flow rates up to 15,000 m³/h.
Size: 190 - 800 mm (impeller diameter).
Vertical outlet.
Highly efficient EC technology.
Mounted on/off switch.
Easy to install.
Integrated control system (EC controller).
Speed is 100% infinitely variable.
Integrated pressure sensor (type: pressure control).
Available with Impeller Sizes 190mm to 800mm
DV roof fans are fitted with backward curved impellers made of plastic, available in sizes 190mm to 800mm. Impellers are mounted directly to the rotor of the external rotor EC motor and are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11.
DV: Centrifugal fan with backward curved impellers made of plastic
• Warehouse ventilation
• Supermarkets ventilation
• Factory ventilation
• Swimming pools ventilation
• Gymnasium ventilation
• Garage ventilation
• Agricultural ventilation
• Stable ventilation
• Farm ventilation
• Commercial building ventilation
• Industrial building ventilation
• Residential building ventilation
• ATEX versions
Technical Data
AC, EC and IEC motor models are all available in sound attenuating versions. IEC Motor Variations (DVWN) can be operated up to 120 °C as the motor is outside of the airstream. The fans are driven by IEC three phase motors and up to size 450 are suitable for voltage control. From size 500 the fans are controllable with a frequency converter. The motor carrier cage is a plastic coated round wheel and has been created with bird and contact protection.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
