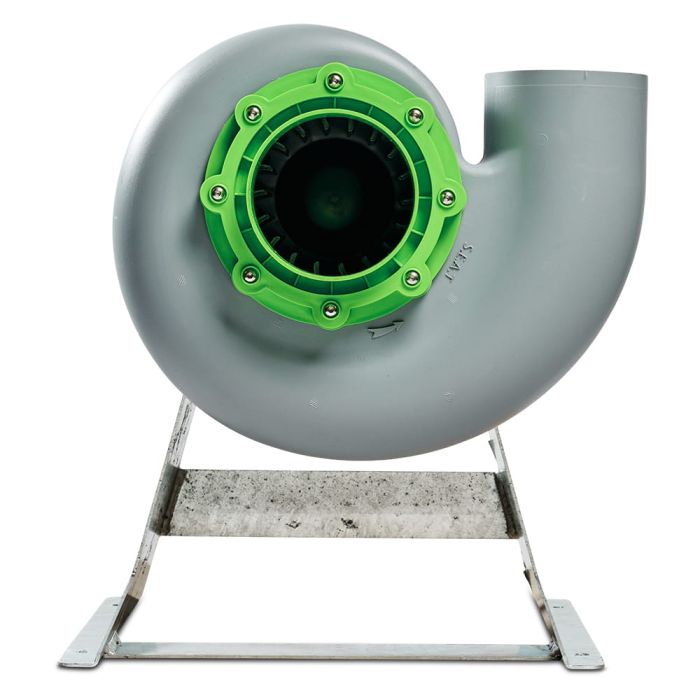

S15 AXAIR Corrosion Resistant Fan
| Body Material | UV treated high density polypropylene |
| Airflow Capabilities | 50-700m3/h |
| Airflow Range | Low to Medium |
| Total Pressure | 20-600Pa |
| Temperature Limitation | 60°C |
| ATEX Gas Options | Zone 2 |
| ATEX Dust Options | None |
| Discharge Orientation Options | LG (Right Discharge) or RG (Left Discharge) |
| Handing Options | 0, 45, 90, 135, 225, 270, 315 |
| Flange Colour | Green |
| Series | Standard S Series |
| Pedestal Options | Galvanised Metal or Outdoor Polypropylene Box Pedestal |
| Inlet Diameter | 125mm |
Performance Data

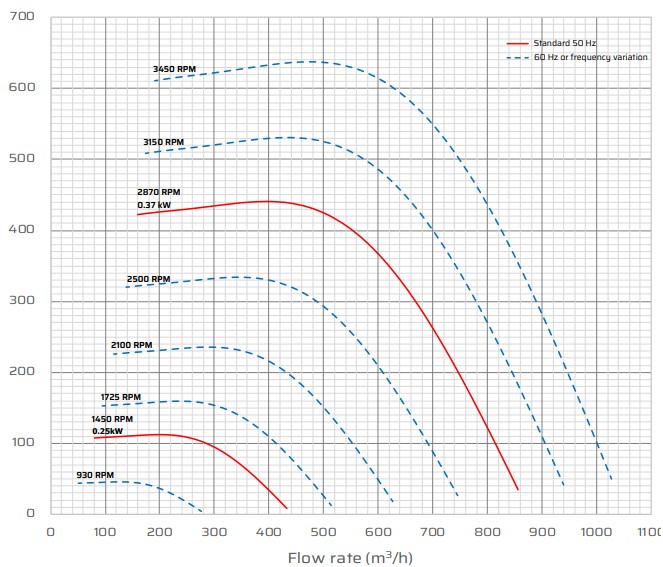

For core performance please refer to the red lines on the curves below.
Blue dashed lines represent 60Hz or frequency variation using a method of speed control. Please discuss this with us.
Product Dimensions

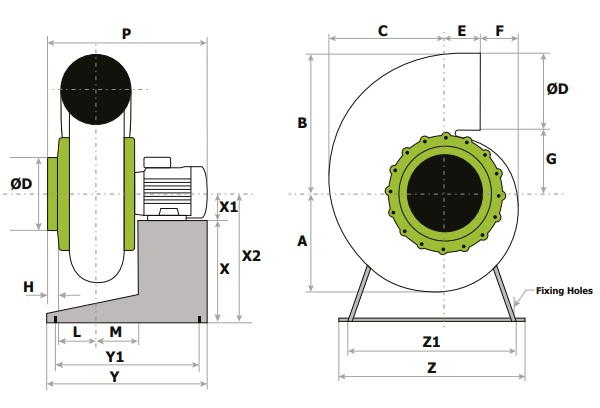

S15 when using a galvanised metal pedestal:
All dimensions are measured in mm
| Diameter | A | B | C | E | F | G | H | L | M | Y | Y1 | Z | Z1 |
| 125 | 170 | 240 | 203 | 100 | 32 | 115 | 30 | 70 | 80 | 350 | 250 | 410 | 350 |
| Motor Size | Motor Frame | X | X1 | X2 | P |
|
0.37kW (2p) 0.25kW (4p) |
71" | 280 | 71 | 351 | 380 |

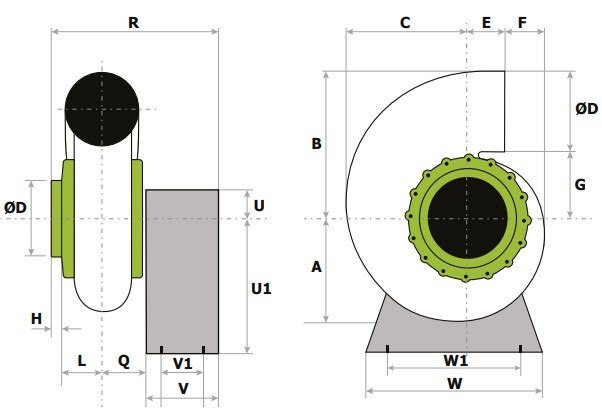

S15 when using a weather proof polypropylene box pedestal:
All dimensions are measured in mm
| Diameter | A | B | C | E | F | G | H | L | Q | R | U | U1 | V |
| 125 | 170 | 240 | 203 | 100 | 32 | 115 | 30 | 70 | 80 | 530 | 369 | 81 | 340 |
| Motor Size | Motor Frame | V1 | W | W1 |
|
0.37kW (2p) 0.25kW (4p) |
71" Frame | 267 | 410 | 318 |
Electrical Data
| Model | Motor | 1~ | 3~ |
Weight (Kg) Fan with Box Pedestal |
Weight (Kg) Fan with Metal Pedestal |
||||||
| Supply | Full Load | Start | Supply | Full Load | Start | 1~ | 3~ | 1~ | 3~ | ||
| S15/4 | 0.25kW | 230/1/50 | 2A | 7A | 400/3/50 | 1.0A | 5A | 11 | 9 | 19 | 18 |
| S15/2 | 0.37kW | 230/1/50 | 2.6A | 10A | 400/3/50 | 1A | 6A | 11 | 9 | 19 | 18 |
Handings & Orientation
The correct handings and orientation directly impacts the airflow direction of the fan within the system or to minimise the bends in system design. Incorrect
handing or orientation can result in inefficient airflow patterns and poorly captured fumes. Incorrect choices can also affect noise and vibrations levels generated by the fan. You should advise your fan supplier of the required fan handing and orientation at the point of order. A project can be stalled or delayed as fan suppliers will not process an order without this information. This ensures the product performs as required in your system.
Depending on the desired airflow pattern and the specific requirements of the extraction system, the impeller rotation can be set to LG (Right rotation) or RD (Left rotation). Multiple discharge positions are available but it is important to ensure that the right handing is chosen before installation. We do not advise that any contractors change the handing themselves, this can lead to the system only achieving 30% of the duty.
Sound Data
| Speed | Qv | SP | LwA | LpA* | Octave Band (Hz) | |||||||
| RPM | (m3/h) | (Pa) | dB(A) | dB(A) | 63 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 |
| 1450 | 245 | 106 | 67 | 46 | 82 | 76 | 71 | 64 | 59 | 48 | 42 | 24 |
| 2870 | 414 | 485 | 81 | 61 | 97 | 91 | 86 | 79 | 74 | 63 | 57 | 49 |
Downloads
Should you require CAD or BIM files to support your specification, please contact us on [email protected] or start a chat using the widget on the lower right of your screen.
Additional Information

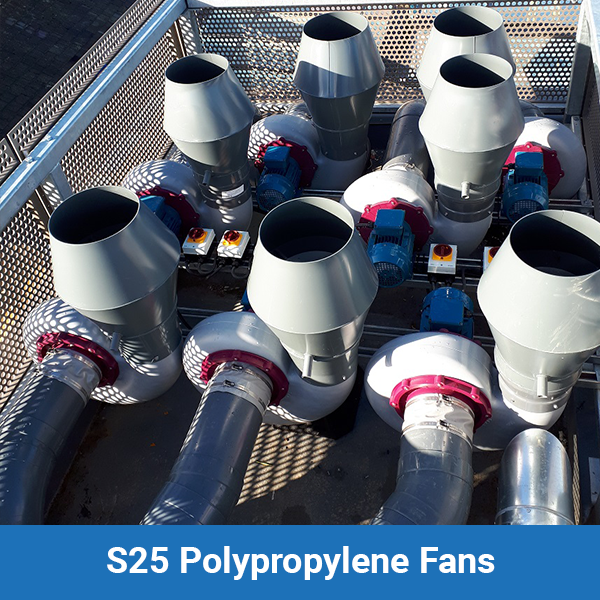

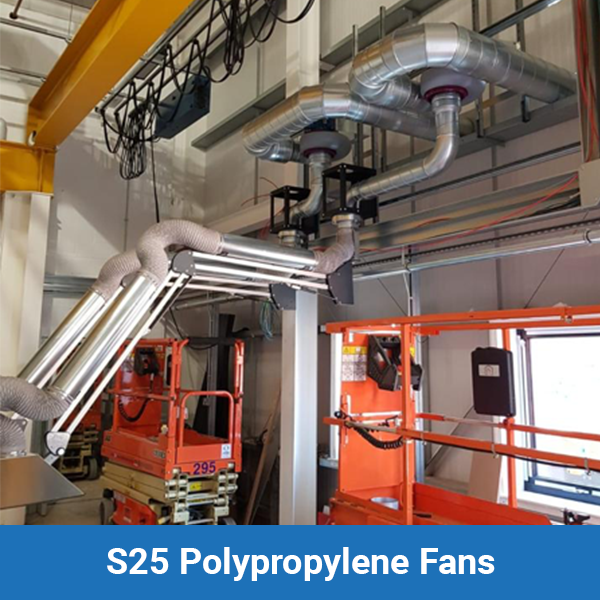

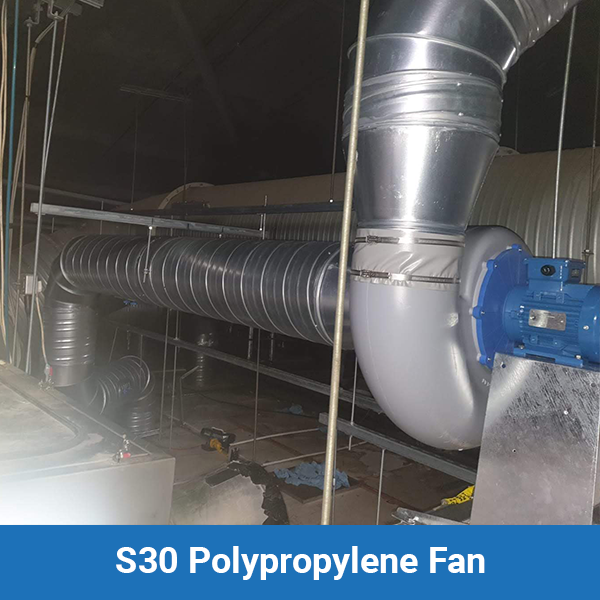

Other sizes within the S series range of fume extraction fans include the S20, S25, S30, S35 & S50 models.
For applications requiring a higher static pressure the STORM range which provides relatively low air flow rate against elevated system pressures may be more suitable.

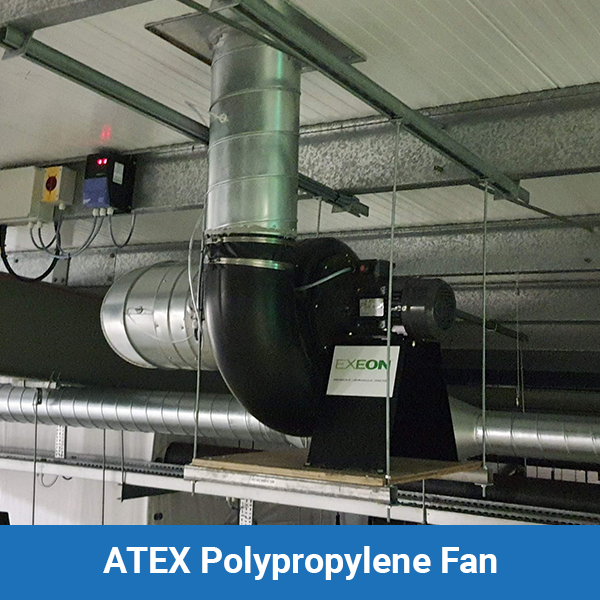

All S models are available as carbon loaded ATEX protected, to zone 2 gas.
Ordering, Stock & Support
In stock for rapid dispatch from our UK warehouse with short lead times. Custom options, ATEX certification and engineering support is available.
Contact our technical team to discuss your system requirements, specific chemical compatibility needs and requests for CAD/BIM files.
