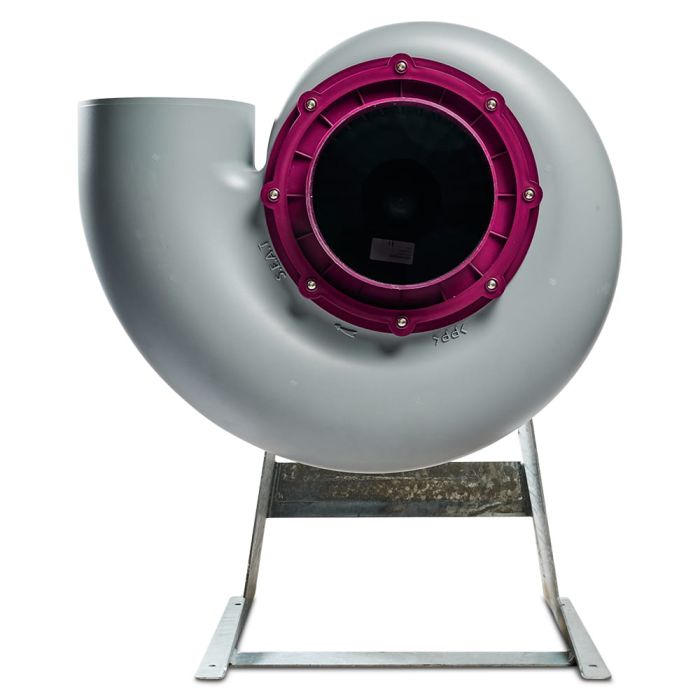

S25 AXAIR Corrosion Resistant Fan

Performance Data

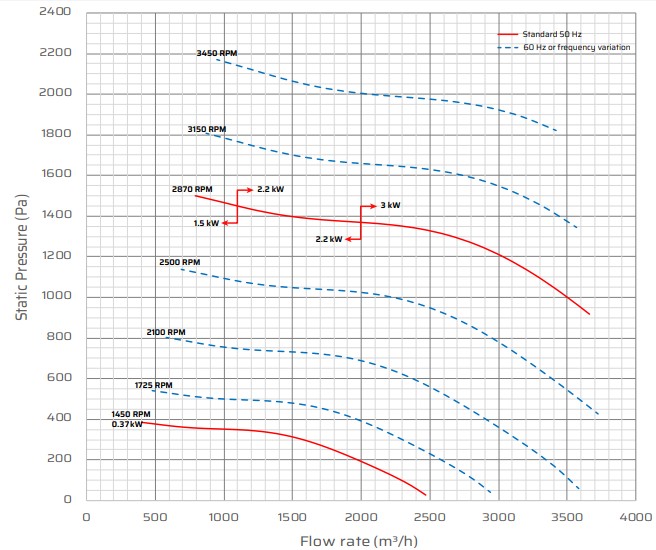

For core performance please refer to the red lines on the curves below.

Blue dashed lines represent 60Hz or frequency variation using a method of speed control. Please discuss this with us.

Product Dimensions

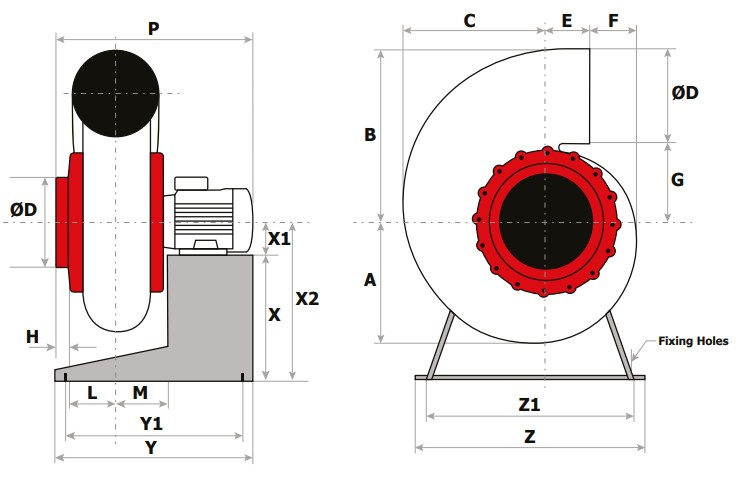

S25 when using a galvanised metal pedestal:

All dimensions are measured in mm

Motor dimensions may vary according to source.

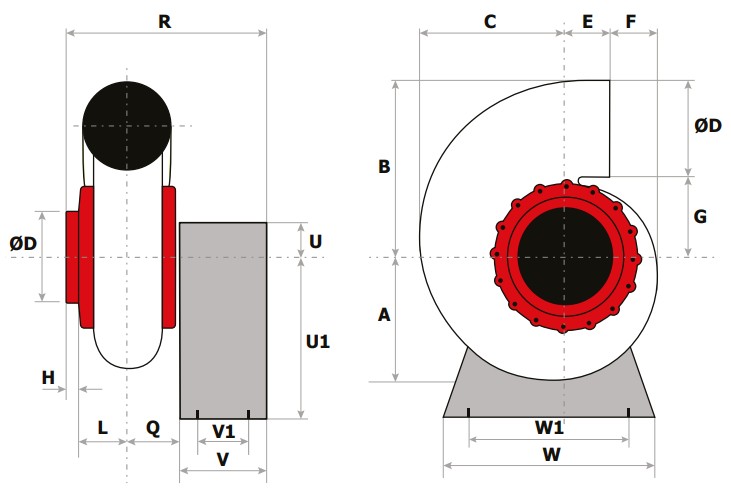

S25 when using a weather proof polypropylene box pedestal:

All dimensions are measured in mm

Motor dimensions may vary according to source.

Electrical Data

Handings & Discharge Orientation

The correct handings and orientation directly impacts the airflow direction of the fan within the system or to minimise the bends in system design. Incorrect handing or orientation can result in inefficient airflow patterns and poorly captured fumes. Incorrect choices can also affect noise and vibrations levels generated by the fan. You should advise your fan supplier of the required fan handing and orientation at the point of order. A project can be stalled or delayed as fan suppliers will not process an order without this information. This ensures the product performs as required in your system.

Discharge Orientation

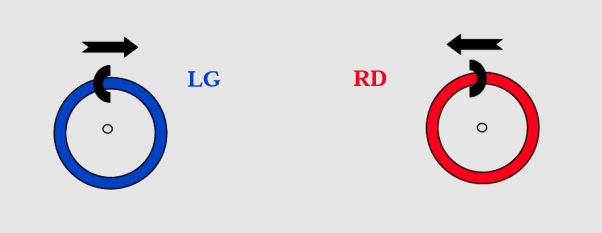

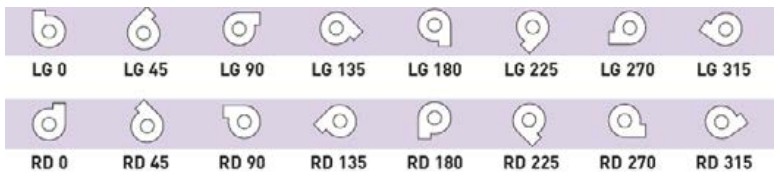

Depending on the desired airflow pattern and the specific requirements of the extraction system, the impeller rotation can be set to LG (Right rotation) or RD (Left rotation). Multiple discharge positions are available but it is important to ensure that the right handing is chosen before installation. We do not advise that any contractors change the handing themselves, this can lead to the system only achieving 30% of the duty.

Sound Data:

Downloads

Should you require CAD or BIM files to support your specification, please contact us on [email protected] or start a chat using the widget on the lower right of your screen.
