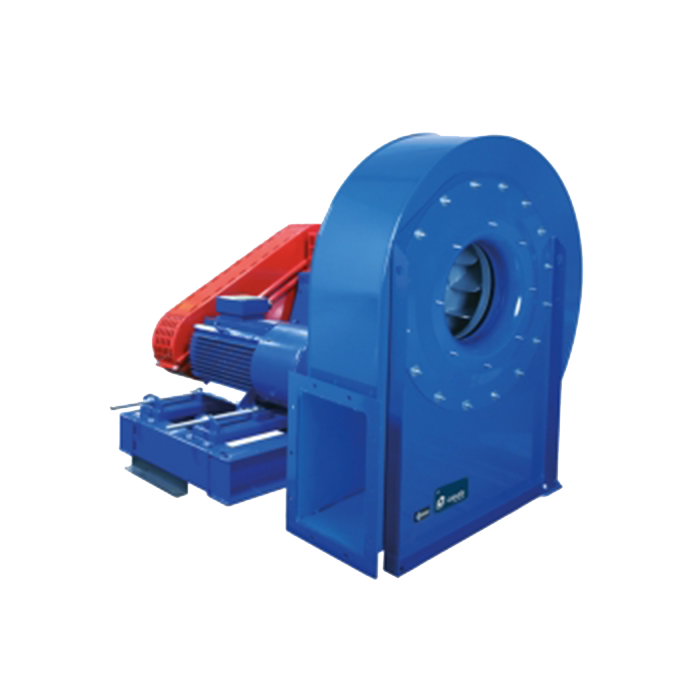

MTGR Medium Pressure Belt Driven Fans
Centrifugal Fan with Belt Transmission
Manufacturing Features:
Fully welded or joined housing manufactured with Fe360 sheet steel.
The fan paint finish is based on a qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
Single inlet backward impeller with self-cleaning system made of Fe360 sheet steel, statically and dynamically balanced. Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Motorised fan with base frame and fully equipped fans including: motor, pulleys, belts, belts guard and shaft guard. IE4 motors for 75kW power or higher.
Standard orientation LG270. The orientation can be adjusted in models 400 to 630. The orientation is fixed for model sizes 710 to 2000.
Belt Driven Fans for Medium Pressure Applications
The MTGR series of belt driven fans designed for inline installation, are suitable for a range of medium pressure industrial applications including clean and slightly dusty air transport, the extraction or injection of air and cooling of machines and parts.
MTGR: Belt driven centrifugal fan with single inlet backward curved impeller
MTGR ATEX: ATEX versions
Designed for inline installation, they are suitable for:
•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Clean and slightly dusty air transport
•Exhaust after filters, separators and cyclones
•Pneumatic transport
•Maximum working temperature: carried air: 200ºC, ambient: 60ºC
•Fans for 60Hz and special voltages
•2 speed motor
•Fan with free shaft or with motor supported on the pedestal side
•C4 or C5 paint coating
•Hot dip galvanised
•Special steel (Cor-Ten A, Hardox...)
•Inox 304 (normal or electropolished finish)
•Inox 316 (normal or electropolished finish)
•Cooling wheel
•Anticaloric paint
•Reinforced housing
•Fully welded housing (waterproof)
•Insulated housing
•Split casing (for big sizes)
•Inspection door to facilitate maintenance and cleaning
•Drain plug
•Airtight axle
•Frontal foot
•Double suction flange
•Available in non-sparking air passage and standard motor
•Other brands of motors
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
Technical Data
MTCA fans are fitted over a base plate and fully equipped including: motor, pulleys, belts, belts guard and shaft guard.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
