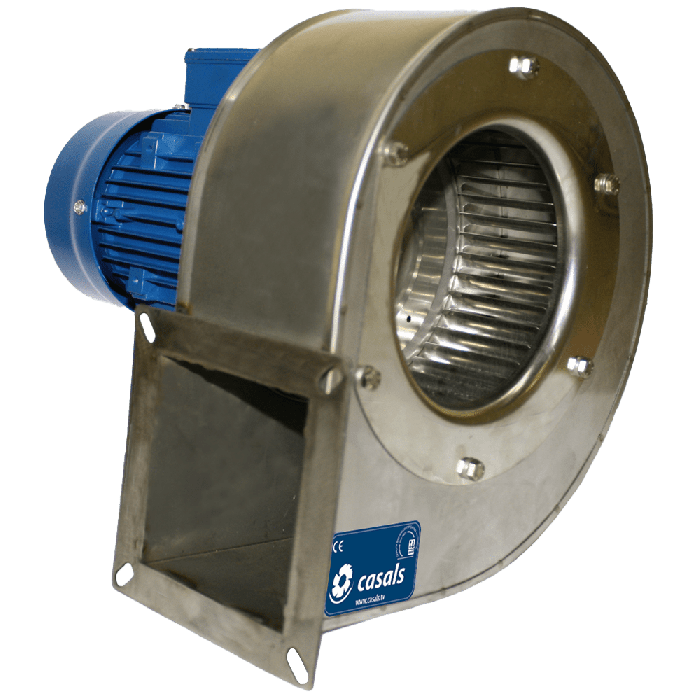

MDI Medium Pressure Stainless Steel Fans

MDI Medium Pressure Stainless Steel Fans

Available in Stainless Steel and ATEX Versions

Manufacturing Features:
Centrifugal fan made of stainless steel.
Welded stainless steel AISI 304 housing.
Stainless steel simple inlet forward curved impeller.
Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages as folllows, 230V 50Hz in 1~ motors and 230/400V 50Hz in 3~ motors.
Standard orientation: LG270.

MDI stainless steel centrifugal fans are suitable

For Corrosive Fume Extraction in Medium Pressure Industrial Applications

Our MDI range of stainless steel centrifugal fans are designed to handle corrosive air at higher temperatures than the polypropylene equivalents. The maximum working temperature of carried air is 130ºC, for ambient air the maximum temperature can reach up to 50ºC (1~) or 60ºC (3~).

Designed for Inline Installation in Industrial Applications

Designed with inline installation in mind, MDI models are suitable for a range of industrial applications such as the extraction or injection of air, cooling of machines and parts, clean air transport and corrosive air transport.

Available Fan Types

MDI: Stainless steel centrifugal fan with forward curved impeller

Suitable Applications

•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Clean air transport
•Corrosive air transport
•Maximum working temperature: carried air: 130ºC, ambient: 1ph 50ºC, 3ph 60ºC

Available on Request

•ATEX versions
•60Hz fans and special voltages
•2 speed motors (3~ motors)
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315

Technical Data

MDI fans are paired with a standard asynchronous squirrel-cage motor manufactured with standard voltages: 230V 50Hz in single phase motors and 230/400V 50Hz in three phase motors. Motors offer IP-55 protection and Class F insulation.
