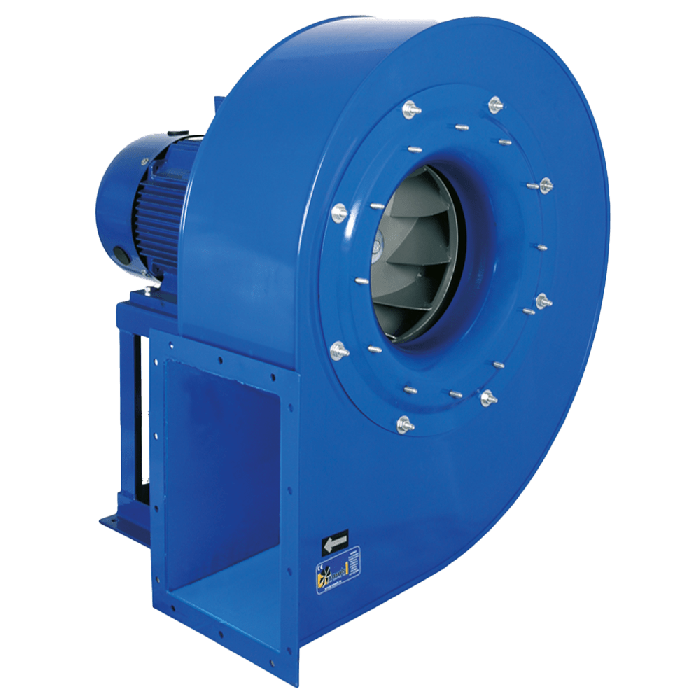

MBRU Medium Pressure Centrifugal Fans
Available in Standard, ATEX and Stainless Steel Construction
Manufacturing Features:
Centrifugal fan with fully welded housing made of Fe360 sheet steel.
Qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
Single inlet backward impeller with self-cleaning system made of Fe360 sheet steel, statically and dynamically balanced. Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Standard orientation LG270. The orientation of models 250 to 630 can be adjusted. In models sizes from 710 to 1400 the orientation is fixed.
Standard asynchronous squirrel-cage motor with IP55 protection and rated class F insulation. Manufactured with standard voltages: 230/400V 50Hz for 3~ motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors for 75kW power or higher.
Ideal for Clean Or Dusty Air Transport at Medium Pressure Rates
MBRU centrifugal fans are ideal for transporting clean or dusty air and small loads of pellet materials within a range of industrial applications where there is a requirement for medium pressure airflow.
MBRU: Medium pressure centrifugal fan with backward impeller
MBRU ATEX: ATEX certified versions.
Designed for wall or duct installation, they are suitable for:
•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Dusty air and small loads of pellet materials transport
•Exhaust after filters, separators and cyclones
•Pneumatic transport
•Maximum working temperature: carried air: 130ºC, ambient: 60ºC
•Fans for 60Hz and special voltage
•2 speed motor
•C4 or C5 paint coating
•Hot dip galvanised
•Special steel (Cor-Ten A, Hardox...)
•Inox 304 (normal or electropolished finish)
•Inox 316 (normal or electropolished finish)
•Cooling wheel
•Anticaloric paint
•Reinforced housing
•Fully welded housing (waterproof)
•Insulated housing
•Split casing (for big sizes)
•Inspection door to facilitate maintenance and cleaning
•Drain plug
•Airtight axle
•Frontal foot
•Double suction flange
•Available in non-sparking air passage and standard motor
•Other brands of motors
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
Technical Data
Available with a Standard asynchronous squirrel-cage motor manufactured with standard voltages: 230/400V 50Hz for three phase motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors for 75kW power or higher.
Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
---|---|---|---|---|---|---|---|
GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
