MBGR Medium Pressure Centrifugal Fans
Available in Standard, ATEX and Stainless Steel Construction
Manufacturing Features:
Medium pressure centrifugal fan made of Fe360 sheet steel.
Qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
Fully welded housing.
Single inlet backward impeller with self-cleaning system made of Fe360 sheet steel, statically and dynamically balanced. Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Standard orientation LG270. The orientation can be adjusted in models 400 to 630. For models 710 to 1400 the orientation is fixed.
Standard asynchronous squirrel-cage motor with IP-55 protection and class F insulation. Manufactured with standard voltages: 230V/400V 50Hz in 1~ motors, 230/400V 50Hz in 3~ motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors for 75kW power or higher.
Designed for Medium Pressure Applications
MBGR centrifugal fans are designed for inline installation and suitable for medium pressure applications such as cooling of machines and parts, clean and slightly dusty air transport, exhaust after filters, separators and cyclones and pneumatic transport. The maximum working temperature of carried air is up to 130ºC and up to 60ºC for ambient air.

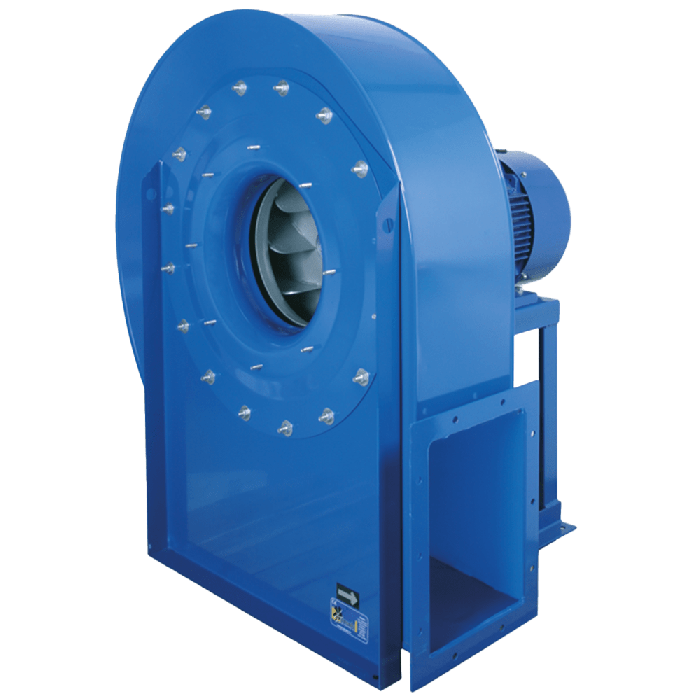

MBGR: Medium pressure fan with backward impeller with self-cleaning system made of Fe360 sheet statically and dynamically balanced
MBGR ATEX: ATEX rated version
Designed for wall or duct installation, they are suitable for:
•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Clean and slightly dusty air transport
•Exhaust after filters, separators and cyclones
•Pneumatic transport
•Maximum working temperature: carried air: 130ºC, ambient: 60ºC
Fans for 60Hz and special voltages
•2 speed motor
•C4 or C5 paint coating
•Hot dip galvanised
•Special steel (Cor-Ten A, Hardox...)
•Inox 304 (normal or electropolished finish)
•Inox 316 (normal or electropolished finish)
•Cooling wheel
•Anticaloric paint
•Reinforced housing
•Fully welded housing (waterproof)
•Insulated housing
•Split casing (for big sizes)
•Inspection door to facilitate maintenance and cleaning
•Drain plug
•Airtight axle
•Frontal foot
•Double suction flange
•Available in non-sparking air passage and standard motor
•Other brands of motors
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
Technical Data
The MBGR range of medium pressure centrifugal fans are paired with a standard asynchronous squirrel-cage motor manufactured with standard voltages: 230V/400V 50Hz in single phase motors and 230/400V 50Hz in three phase motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors for 75kW power or higher.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
