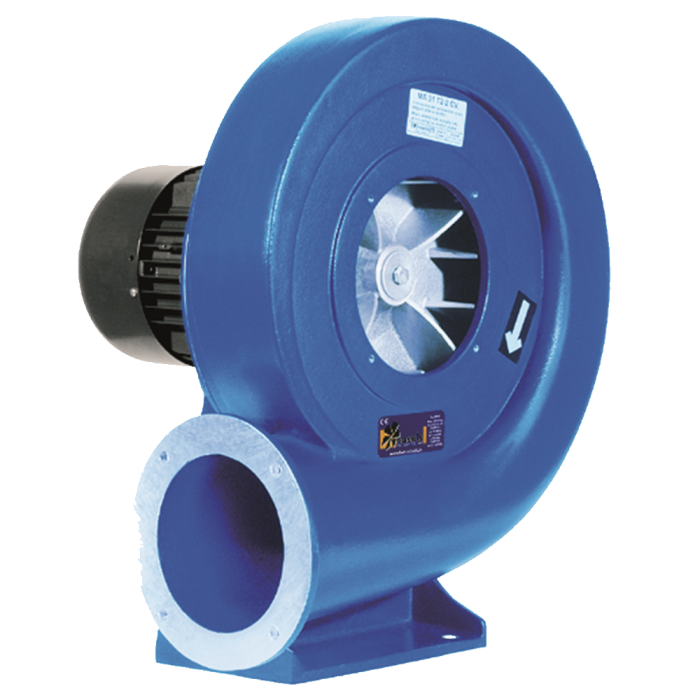

MA Medium Pressure Radial Fans

MA Medium Pressure Radial Fans

Available with Straight Radial or Forward Curved Impellers

Manufacturing Features:
Centrifugal fan with cast aluminium housing.

Cast aluminium impeller.
Polyester powder finishing coat.
Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 230V 50Hz in 1~ motors and 230/400V 50Hz in 3~ motors.
Standard position LG 270.

An industrial range of medium pressure centrifugal fans

Designed for Solid Material Transport

MA and MA P/R fans are designed for inline installation and suitable for a range of medium pressure industrial applications. The MA P/R series featuring a straight radial impeller are designed for solid material transport (except for textile fibres). The MA series of fans available with straight or forward curved impellers are more suitable for clean and slighlty dusty air transport. ATEX versions are available on request.

Durable Fans with Enhanced Corrosive Resistance

MA models feature a cast aliminium housing and impellers with a polyester powder finishing coat which increases the corrosion resistance. The maximum working temperature of carried air is up to 130°C and up to 60°C for ambient air in 3~ motors or 50ºC for 1~ motors.

Available Fan Types

MA P/R: Centrifugal fan with straight radial impeller

MA: Centrifugal fan with straight or forward curved impellers

MAX: ATEX rated version

Suitable Applications


•Extraction or injection of air
•Cooling of machines and parts
•Clean and slightly dusty air transport

•Solid material transport (except for textile fibres)

Available on Request

•60Hz fans and special voltages
•2 speed motors (3~ motors)
•Orientation: LG0, LG45, LG90, LG135, LG180, LG315
