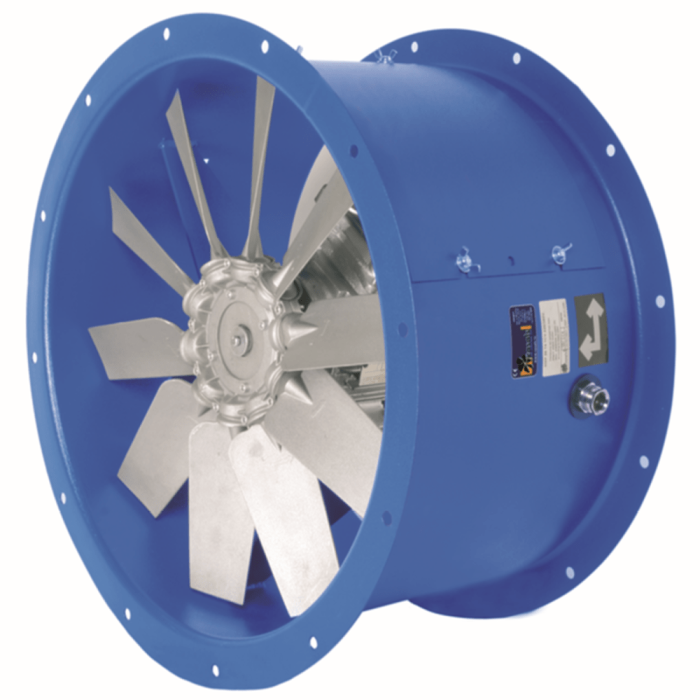

HMA Long Cased Axial Fans

HMA Long Cased Axial Fans

Available in Standard, ATEX and Stainless Steel Construction

Manufacturing Features:
Reinforced fan casing manufactured in rolling steel sheet.

Motor-impeller modular assembly for complete versatility.
Cast aluminium impeller with variable pitch angle.

Polyester powder finishing coat.
Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation.

Manufactured with standard voltages: 230V 50Hz in 1~ motors and 230/400V 50Hz in 3~ motors up to 4kW and 400/690V 50Hz for higher powers.

HMA reinforced industrial axial fans with increased corrosion resistance can be

Optimised to Provide Specific Airflow Rates in Industrial Applications

The HMA range of long cased axial fans feature a reinforced steel fan casing with a polyester powder coat finish, offering enhanced mechanical strength, durability and high corrosive resistance. They are designed for wall or duct installation and suitable for air renewal in buildings and industries and smoke extraction with a maximum working temperature of 50ºC in single phase and up to 60ºC three phase.

Versatile Fans Suitable for Higher Volume Airflow

HMA long cased axial fans provide a comprehensive range of duties with the feature of variable pitch angle blades that are designed to provide a precise and efficient measure of high volume airflow in low to medium pressure systems.

Available Fan Types

HMA: Cast aluminium impeller with variable pitch angle

HM: Polypropylene impeller (A2 profile) or polyamide impeller reinforced with fibreglass (other profiles) with variable pitch angle

HMX: ATEX rated

Alternative Long Cased Axial Fan Ranges:

Casals HH-2 Long Cased Axial Fans

Rosenberg ANDB Long Cased Axial Fans

Suitable Applications

•Air renewal in buildings and industries
•Smoke extraction (max 50-60ºC)
•Maximum working temperature: 1~ 50ºC, 3~ 60ºC

Available on Request

Technical Data

HMA long cased axial fans are supplied with a standard asynchronous squirrel-cage motor manufactured with standard voltages: 230V 50Hz in single phase motors and 230/400V 50Hz in three phase motors up to 4kW and 400/690V 50Hz for higher powers.

Fan Type Voltage
(V)
Frequency
(Hz)
Input
Power (kW)
Rated
Current (A)
Speed
(rpm)
Max Temp
(°C)
IP Rating
(IP)
GKHM 355-CIG.102.5HF IE Gen3 (IE5) 3~ 380-480 50 / 60 2.33 3.7 at 400V 3120 40 IP54
GKHM 400-CIG.114.6FF IE Gen3 (IE5) 3~ 380-480 50 / 60 4.48 7 at 400V 3170 40 IP54
GKHM 450-CIG.128.6IF IE Gen3 (IE4) 3~ 380-480 50 / 60 5.9 9.05 at 400V 2950 40 IP54
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 7.48 11.4 at 400V 2625 40 IP54
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 6.85 10.7 at 400V 2125 40 IP54
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 5.1 7.88 at 400V 1580 40 IP54
