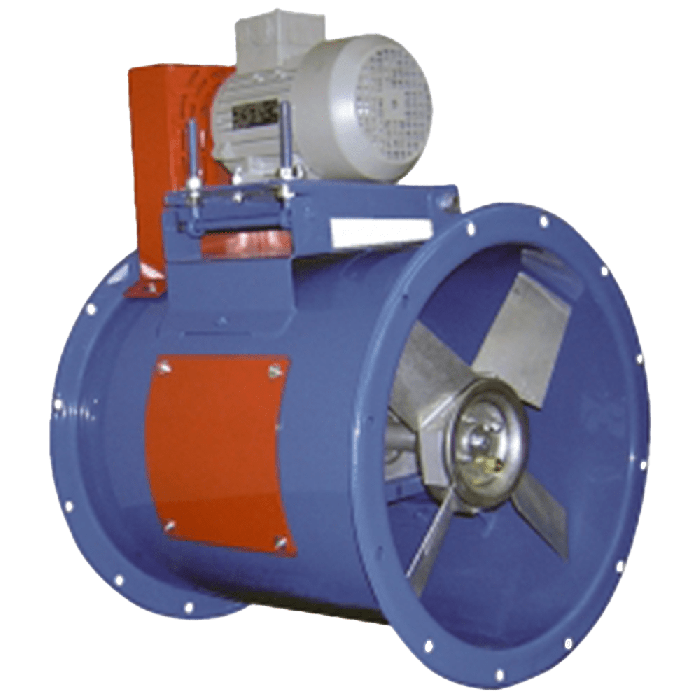

HH-2 Long Cased Axial Fans

HH-2 Long Cased Axial Fans

Available in Standard and ATEX Construction

Manufacturing Features:
Long cased axial fan with external rotor motor.
Cast aluminium impeller with variable pitch blades.
Transmission ball bearings set inside a sealed cast iron box.
Polyester powder finishing coat.
Inspection door.
Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation.

Manufactured with standard voltages: 230V 50Hz in 1~ motors and 230/400V 50Hz in 3~ motors, up to 4kW and 400/690V 50Hz for higher powers.

Versatile axial fans with enhanced corrosion resistance suitable

For Higher Volume Airflow Rates

The HH-2 range of long cased axial fans feature a reinforced polyester powder coated steel fan casing offering increased mechanical strength, durability and high corrosion resistance. They are designed for air renewal in buildings and industries and the extraction of hot air up to 90ºC.

Featuring Adjustable Impellers for Optimised Airflow Rates

HH-2 long cased axial fans feature adjustable aluminium blades for controlled and precise, higher volume airflow rates in low to medium pressure applications. ATEX versions are available on request.

Available Fan Types

HH-2: Cast aluminium impeller with variable pitch blades

HHX-2: ATEX rated to zones 1, 2 and 22

Suitable Applications

•Air renewal in buildings and industries
•Extraction of hot air up to 90ºC
•Maximum working temperature: carried air: 90ºC, ambient: 60ºC

Available on Request

•Supply impeller (air direction from impeller to motor)
•Reversible impeller
•Polyamide impeller
•60Hz fans and special voltages
•2 speed motors
•Hot-dipped galvanised
•ATEX fans (HHX-2)
