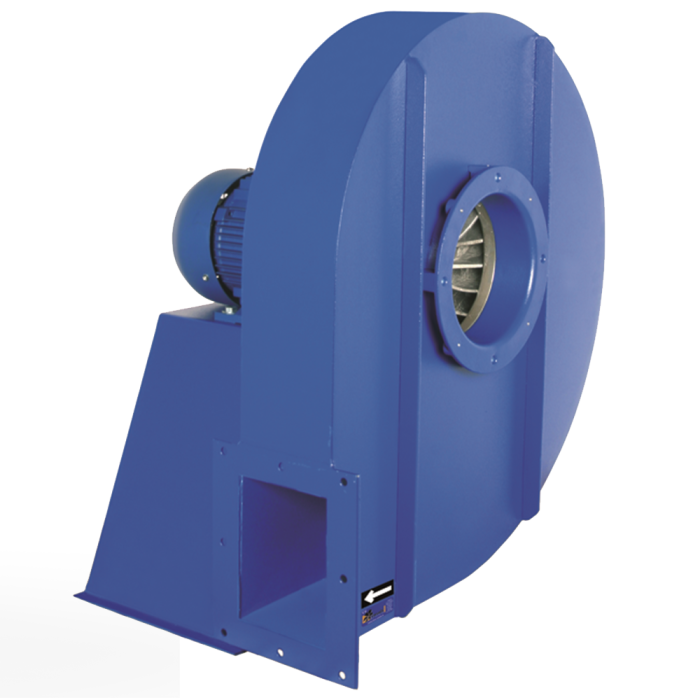

High Pressure Centrifugal Fans

High Pressure Centrifugal Fans

High Pressure Fans with Motors Out of the Airstream for Inline Installation

A heavy industrial fans range suitable for high pressure applications in industrial marketplaces. Manufactured by industrial fan experts, Casals, all fan components are constructed in adherence to legislation dictating their use in UK markets and sensitive applications including ATEX environments.

Contact our in house fan selection experts to determine the industrial high pressure centrifugal fan best suited to your systems operating duties.

Heavy industrial centrifugal fans manufactured by Casals Ventilation for

Superior Air Movement in High Pressure Industrial Applications

Our high pressure centrifugal fan range is suitable for applications such as industrial air extraction or injection, machine cooling and clean air transport. The series is also suitable for exhaust after filters, separators and cyclones and pneumatic transport. Other applications include general air extraction systems, printing and drying equipment, food processing and fume control, amongst others. As an example, the maximum working temperature of carried air for our AA high pressure series is 130°C and the maximum temperature on environmental air is 60°C.

High Pressure Air Extraction or Injection with Enhanced Features

Standard motors out of the air stream enable high pressure centrifigal fans to operate in environments with elevated carried air temperatures, ensuring the motor remains in ambient air for longevity and protection. Contact our fan selection experts for high temperature selections.

ATEX Constructions

Most high pressure centrifugal fans are available in ATEX certified fan constructions under Ex h ATEX markings, and certified for use in gas zone 1 or 2, or dust zones 21 or 22. Please contact one of our fan selection experts with key information to ensure we can make a safe and accurate explosive environment fan selection. ATEX rated fans

Enhanced Corrosion Protection

Industrial fan corrosivity and protection can be enhanced through the application of special paint grades C4 or C5.

Alternatively stainless steel inox 304 or 316, either standard or electropolished option are available on request.

Lead times apply, contact us for accurate information.

Configurations

We offer multiple configurations of motor, fan, blade combinations to suit customer requests, contact us for fan selection assistance.

  • Straight or radial blades suitable for material handling
  • Backward curved hygienic self cleaning blades
  • Belt driven radial blades
