GDS, GDR & GDF Forward Curved Centrifugal Fans

GDS, GDR & GDF Forward Curved Centrifugal Fans

Versatile OEM Focused Compact Centrifugal Fans

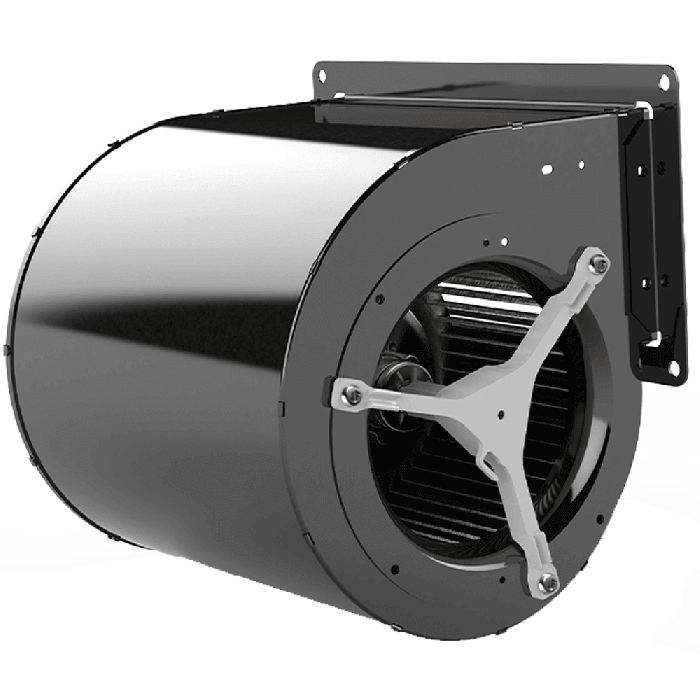

GDS, GDR & GDF forward curved fans offer a highly efficient, low noise solution for low pressure applications, particularly in compact spaces. Higher volumes of airflow can be achieved due to the wider scroll housing and dual air inlet, drawing in a higher volume of air up through its wider exhaust outlet. Send us your enquiry or give us a call to discuss your application in more detail. We’ll select the correct fan model that will meet all your requirements.

External rotor motor fans for OEM's

Offer Convenient Speed Control and a Constant Reliable Airflow in Confined Spaces

The Ecofit range of external rotor motor fans are designed to help original equipment manufacturers save space within their products and, if necessary, to obtain speed control by means of low cost triac electronic or auto-transformer voltage variation. They provide an ideal solution for fan coil units, air curtains and general HVAC.

Download Brochure

Offering Airflows Up to 1760m3/h

GDS, GDR & GDF forward curved impellers are made from galvanised steel and available in sizes from 120mm up to 180mm. They can provide an airflow rate from 200m3/h up to 1760m3/h and a maximum pressure from 430Pa up to 600Pa.



Available Fan Types

GDR: Double inlet centrifugal fan

GDS: Double inlet centrifugal fan, double shaft, IP44

GDF: Double inlet centrifugal fan, double shaft, high power, IP54

Suitable Applications

GDS, GDR & GDF forward curved fans are suitable for:

•Fan coil units
Heat recovery systems
•Air curtains
•School MVHR
•General HVAC
•Air conditioning
•Air handling units
•Compressors
•Industrial buildings
•Renewable energy sources, e.g. wind turbines
•Ventilated workbenches
•Cooling machines and parts
•Clean air transport
•Extraction and injection of air
•Air filtration
•Spray containment
•Fume control
•Inflatable products
•Attenuated fan boxes
•Solarium equipment
•Conveyor cooling
•Electronic enclosure ventilation
•Rail HVAC systems
•Combustion systems & processes
•Residual waste incineration furnaces
•Medical waste combustion
•Mobile incineration units
•Waste wood combustion
•Residential air quality
•Air extraction
•Blowing
•Energy recovery
•Dual flow ventilation for private homes
•Controlled ventilation
•Controlled insufflation ventilation

Available in AC or EC

AC Version

•Forward curved impeller made of galvanised steel
•Impeller diameter of 120 up to 180mm
•AC single phase capacitor external rotor motor 230V50/60Hz and 120V50/60Hz
•Black painted steel scroll
•Maximum airflow of 400 up to 1100m3/h, maximum pressure of 100 up to 450Pa,
•CE, UL, CCC mark
•Options: special voltage, three phase, impeller length

EC Version

•EC external rotor motor 230V50/60Hz and 120V50/60Hz
•Integrated electronic
•Forward curved impeller made of galvanised steel
•Impeller diameter of 120 up to 180mm
•Black painted steel scroll
•Maximum airflow of 200 up to 1760m3/h, maximum pressure of 430 up to 600Pa
•CE, UL mark
•Options: impeller length, alarm signal

Technical Data

The GDS, GDR and GDF range of forward curved fans are paired with an external rotor motor; 230V 50/60Hz and 120V50/60Hz.

Fan Type Voltage
(V)
Frequency
(Hz)
Input
Power (kW)
Rated
Current (A)
Speed
(rpm)
Max Temp
(°C)
IP Rating
(IP)
GKHM 355-CIG.102.5HF IE Gen3 (IE5) 3~ 380-480 50 / 60 2.33 3.7 at 400V 3120 40 IP54
GKHM 400-CIG.114.6FF IE Gen3 (IE5) 3~ 380-480 50 / 60 4.48 7 at 400V 3170 40 IP54
GKHM 450-CIG.128.6IF IE Gen3 (IE4) 3~ 380-480 50 / 60 5.9 9.05 at 400V 2950 40 IP54
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 7.48 11.4 at 400V 2625 40 IP54
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 6.85 10.7 at 400V 2125 40 IP54
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) 3~ 380-480 50 / 60 5.1 7.88 at 400V 1580 40 IP54
