Fume Cupboard and Alarms

Next Page >> IP Classification (Ingress Protection) >>

Fume cupboard standard BS EN 14175-2:2003 recommends:-

An air flow indicator shall be incorporated to show unambiguously the correct functioning of the fume cupboard’s air flow
Means should be provided to easily check or self-check the correct functioning of the air flow indicator
Audible and visual alarms shall warn the operator of incorrect operation of the fume cupboard. The audible alarm may be silenced once alarmed

LABAIR is a product that meets the requirements of fume cupboard standard EN 14175, electro-magnetic standard EN 61326, and RoHS Directive CE12

Silver-one

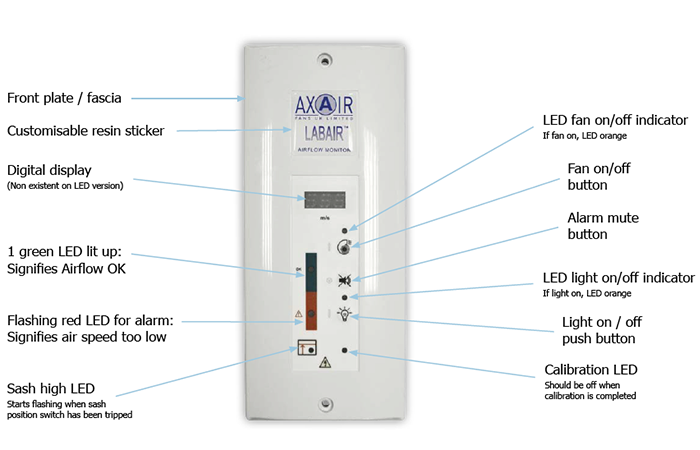

Fascia Panel

Panel in white, dark grey or silver plastic – 210 x 90 x 10 deep – IP55 embedded ‘O’ ring sealed

Mounting vertical or horizontal options

Logo sticker – crystal domed stating either AXAIR or custom printed design

Control sticker with either black or white background

LEDs in green and red indicate whether sash face air speed is High, Normal, or Low

LEDs in orange indicate Sash High, Calibration Mode, Fan Run, and Light On

Buttons for Fan Run, Cupboard Light and Audible Alarm Mute

Button test procedure to confirm that all alarm features are operational

Printed Circuit Board

Electronics operate at 12Vdc via a 230Vac/12Vdc power supply; battery back-up is optional

Settings for alarm delay, system purge, and re-calibration

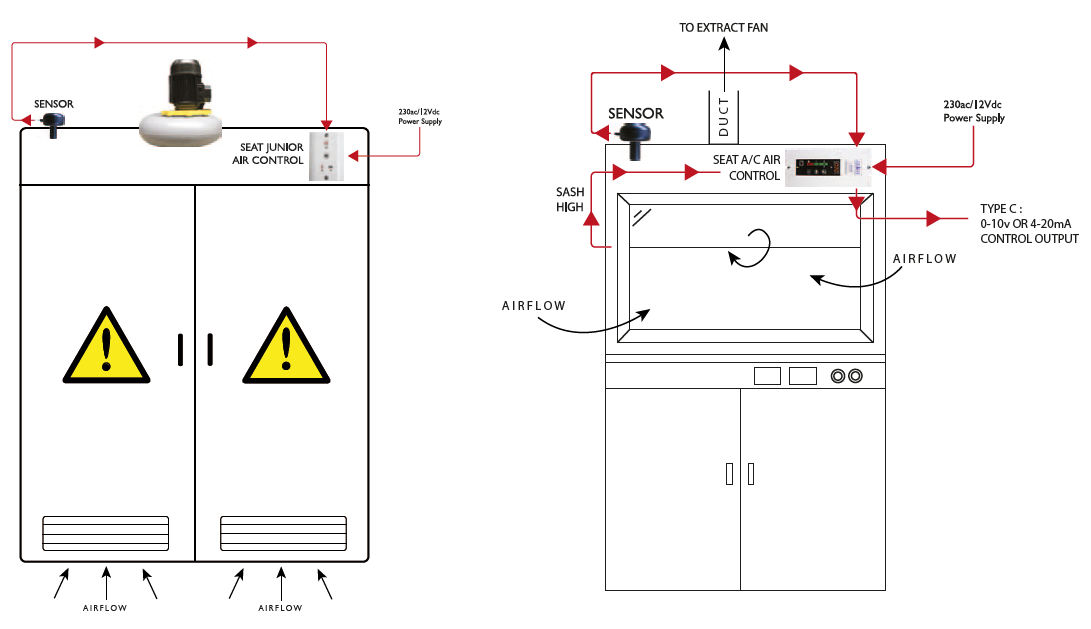

Connection points for power supply, air speed sensor, fan relay, cupboard light, sash high

Protection in an IP55 surface box, or IP55 sealed to a service panel cut-out.

Model

LABAIR-A for basic air speed monitoring and alarm feature

LABAIR-C for additional control of air speed at the sash face utilising PID output to an inverter fan drive or damper electronics

LABAIR-AD & CD to digitally display the air speed at the sash face

Model

LABAIR models are factory calibrated to provide an alarm signal when the sash face air speed falls below 0,5m/s. They can be re-calibrated in-situ for other air speeds if required.
