AAZA High Pressure Centrifugal Fans
Available in Standard, ATEX and Stainless Steel Construction
Manufacturing Features:
Centrifugal fan made of Fe360 sheet steel.
Fully welded housing with qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of
of 180ºC with peaks of 200ºC.
High efficiency simple inlet with curved, radial or open blade impellers made of Fe360 sheet steel, statically and dynamically balanced. Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Standard orientation LG270. Models 400 to 630 allow for the orientation to be adjusted. The orientation is fixed in models 710 to 1000.
Standard asynchronous squirrel-cage motor with IP-55 protection and class F insulation. Manufactured with standard voltages: 230/400V 50Hz in 3~ motors up to 4kW and 400/690V 50Hz for higher powers.
Ideal for High Pressure Industrial Applications
The AAZA series are designed for inline installation and can be used in various high pressure applications including clean and dusty air transport, cooling of machines and parts, pneumatic transport and exhaust after filters, separators and cyclones. An ATEX certified version is available on request.

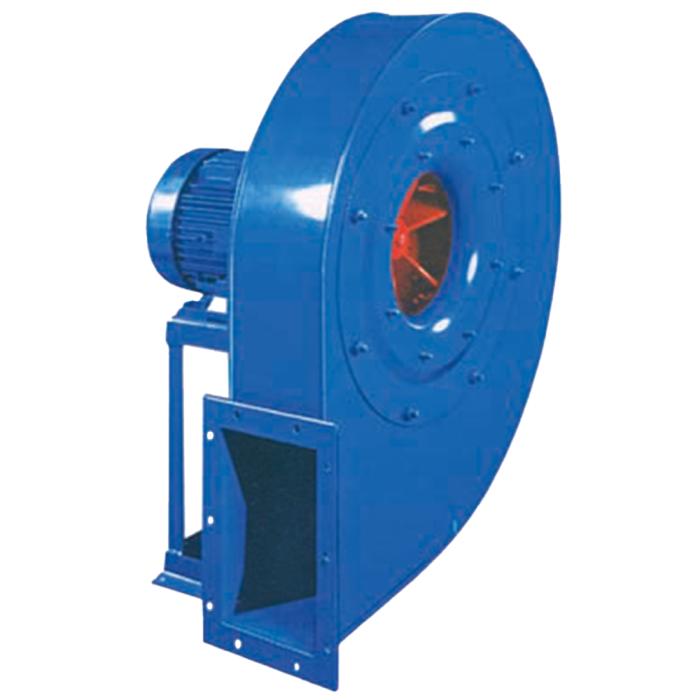

AAZA: High pressure centrifugal fan with straight impeller
AAZA ATEX: ATEX version
Designed for inline installation, they are suitable for:
• Industrial applications, extraction or injection of air
• Cooling of machines and parts
• Clean and dusty air transport
• Exhaust after filters, separators and cyclones
• Pneumatic transport
• Maximum working temperature: carried air: 130ºC ambient: 60ºC
• Fans for 60Hz and special voltages
• 2 speed motor
• C4 or C5 paint coating
• Hot dip galvanised
• Special steel (Cor-Ten A, Hardox...)
• Inox 304 (normal or electropolished finish)
• Inox 316 (normal or electropolished finish)
• Cooling wheel
• Anticaloric paint
• Reinforced housing
• Fully welded housing (waterproof)
• Insulated housing
• Split casing (for big sizes)
• Inspection door to facilitate maintenance and cleaning
• Drain plug
• Airtight axle
• Frontal foot
• Double suction flange
• Available in non-sparking air passage and standard motor
• Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
Technical Data
The AAZA series of high centrifugal fans are paired with a standard asynchronous squirrel-cage motor with IP-55 protection and class F insulation. Manufactured with standard voltages:230/400V 50Hz in three phase motors up to 4kW and 400/690V 50Hz for higher powers.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
