AAVP/N High Pressure Centrifugal Fans
Available in Standard, ATEX and Stainless Steel Construction
Manufacturing Features:
High pressure centrifugal fans made from Fe360 sheet steel.
Qualicoat polyester powder coat paint finish with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
High efficiency simple inlet backward impeller with self-cleaning system made of Fe360 sheet statically and dynamically balanced.
Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Standard orientation LG270. Other available positions: LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315.
Standard asynchronous squirrel-cage motor with IP-55 protection and class F insulation. Manufactured with standard voltages: 230/400V 50Hz in 3~ motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors for 75kW power or higher.
Ideal for High Pressure Applications
AAVP/N centrifugal fans are designed for inline installation and suitable for a range of high pressure industrial applications including the extraction or injection of air, cooling of machines and parts, pneumatic transport, clean and slightly dusty air transport and exhaust after filters, separators and cyclones.

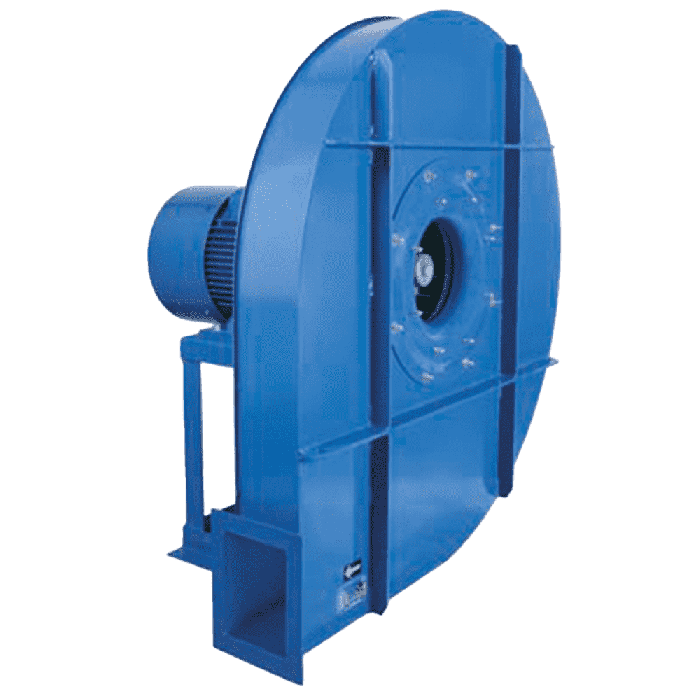

AAVP/N: Centrifugal fan with Fe360 sheet steel backward impeller
Our alternative high pressure fan ranges include:
•AAVG/N Backward Curved Centrifugal Fans
•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Clean and slightly dusty air transport
•Exhaust after filters, separators and cyclones
•Pneumatic transport
•Maximum working temperature: carried air: 130ºC, ambient: 60ºC
•Fans for 60Hz and special voltages
•2 speed motor
•C4 or C5 paint coating
•Hot dip galvanised
•Inox 304 (normal or electropolished finish)
•Inox 316 (normal or electropolished finish)
•Cooling wheel
•Anticaloric paint
•Reinforced housing
•Fully welded housing (waterproof)
•Insulated housing
•Split casing (for big sizes)
•Inspection door to facilitate maintenance and cleaning
•Drain plug
•Airtight axle
•Frontal foot
•Double suction flange
•Non-sparking air passage and standard motor
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
Technical Data
AAVP/N models are paired with standard asynchronous squirrel-cage motors manufactured with standard voltages: 230/400V 50Hz in three phase motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors are available for 75kW power or higher.
Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
---|---|---|---|---|---|---|---|
GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
