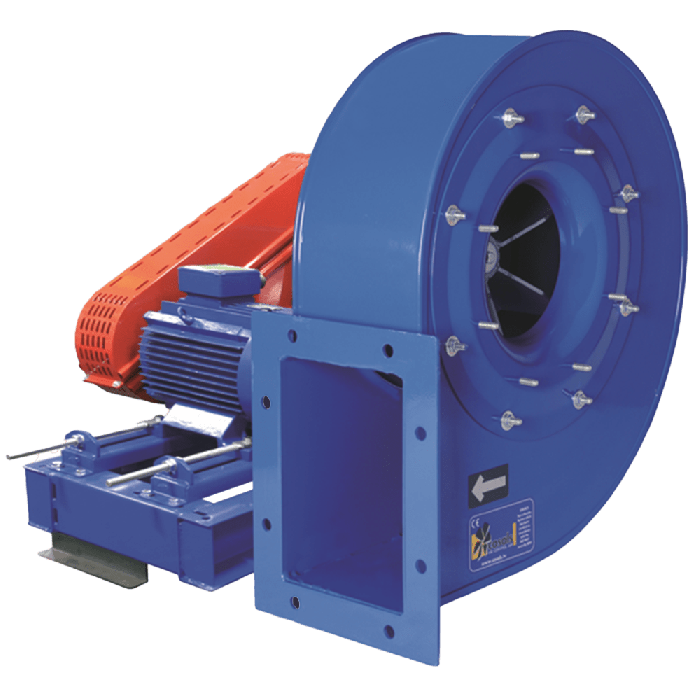

MTZM P/R Medium Pressure Belt Driven Radial Fans
High Efficiency Radial Fans for Solid Material Transport
Manufacturing Features:
Centrifugal fan made of Fe360 sheet steel with fully welded or joined housing.
The fan paint finish is based on a qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
High efficiency straight impellers painted with polyester primer that resists temperatures up to 300ºC.
Motorised fan fitted over a base plate.
Fully equipped including: motor, pulleys, belts, belts guard and shaft guard.
IE4 motors for 75kW power or higher.
Standard orientation: LG270. The orientation can be adjusted locally in model sizes 250 to 630. For model sizes 710 to 1000 size, the orientation is fixed.
Ideal for High Temperature Industrial Applications
The MTZM P/R range of medium pressure belt driven radial fans are finished with a qualicoat polyester powder coating offering an average heat resistance of 180ºC with peaks of 200ºC. Its impellers are painted with a polyester primer that resists temperatures up to 300ºC. They are suitable for high temperature applications and offer a maximum working temperature of carried air up to 130ºC, and up to 60ºC for ambient air.
MTZM P/R: Belt driven centrifugal fan with straight blade impeller
Designed for inline installation, they are suitable for:
• Industrial applications, extraction or injection of air
• Cooling of machines and parts
• Clean air and pneumatic transport
• Solid material transport and textile fibres
• Maximum working temperature: carried air: 130ºC, ambient 60ºC
• Fans for 60Hz and special voltages
• 2 speed motor
• Fan with free shaft (configuration 1) or with motor supported on the pedestal side (configuration 9)
• C4 or C5 paint coating
• Hot dip galvanised
• Special steel (Cor-Ten A, Hardox...)
• Inox 304 (normal or electropolished finish)
• Inox 316 (normal or electropolished finish)
• Cooling wheel
• Anticaloric paint
• Reinforced housing
• Fully welded housing (waterproof)
• Insulated housing
• Split casing (for big sizes)
• Inspection door to facilitate maintenance and cleaning
• Drain plug
• Airtight axle
• Frontal foot
• Double suction flange
• Non-sparking air passage and standard motor
• Other brands of motors
• Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315.
