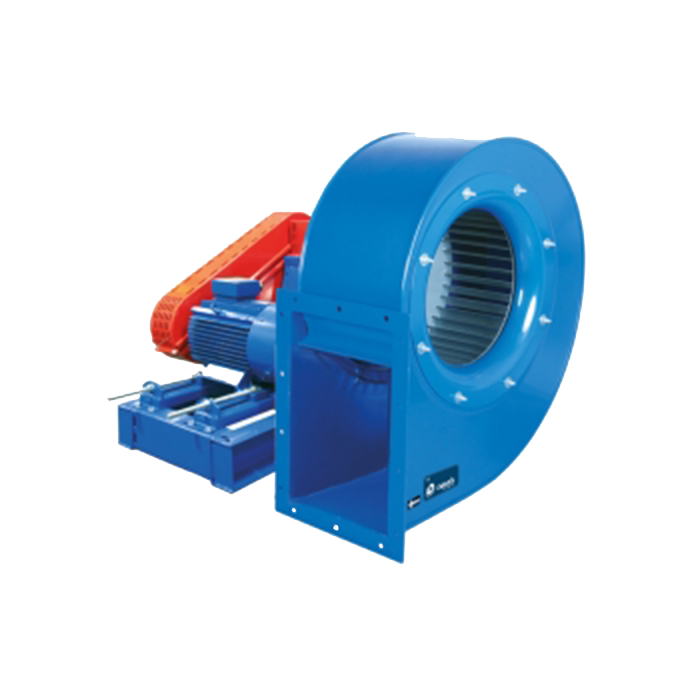

MTCA Medium Pressure Belt Driven Fans
Centrifugal Belt Driven Fan Made of Fe360 Sheet Steel
Manufacturing Features:
Fully welded housing finished with a qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
Single inlet forward curved impeller made of Fe360 sheet steel, statically and dynamically balanced. Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Motorised fan with base frame and fully equipped fans including: motor, pulleys, belts, belts guard and shaft guard. Fitted over a base plate.
Standard orientation LG270. The orientation can be adjusted locally in models 220 to 630. Models sizes from 710 to 1000 size the orientation is fixed.
Ideal for Medium Pressure Applications
The MTCA series of belt driven fans are designed for inline installation in a range of medium pressure applications including the extraction or injection of air in industrial applications, cooling of machines and parts and clean air and pneumatic transport.
MTCA: Belt driven centrifugal fan with forward curved impeller
MTCA ATEX: ATEX versions
Designed for inline installation, they are suitable for:
•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Clean air and pneumatic transport
•Maximum working temperature: carried air: 200ºC, ambient: 60ºC
•Fans for 60Hz and special voltages
•2 speed motor
•Fan with free shaft or with motor supported on the pedestal side
•C4 or C5 paint coating
•Hot dip galvanised
•Special steel (Cor-Ten A, Hardox...)
•Inox 304 (normal or electropolished finish)
•Inox 316 (normal or electropolished finish)
•Cooling wheel
•Anticaloric paint
•Reinforced housing
•Fully welded housing (waterproof)
•Welded impeller
•Insulated housing
•Split casing (for big sizes)
•Inspection door to facilitate maintenance and cleaning
•Drain plug
•Airtight axle
•Frontal foot
•Double suction flange
•Available in non-sparking air passage and standard motor
•Other brands of motors
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
Technical Data
MTCA motorised fans are fitted with a base plate and fully equipped with motor, pulleys, belts, belts guard and shaft guard. The standard orientation is LG270.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
