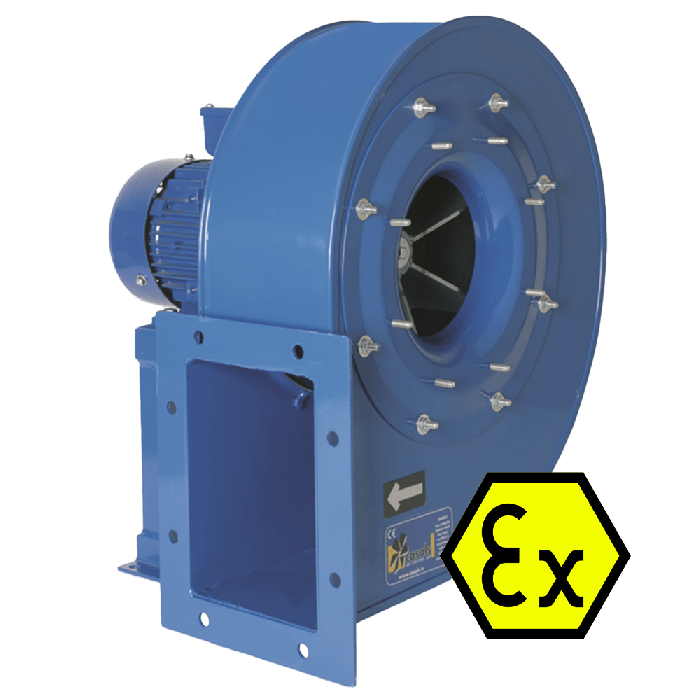

MBZM P/R Medium Pressure Radial Fans

MBZM P/R Medium Pressure Radial Fans

Available in Standard, ATEX and Stainless Steel

Manufacturing Features:
Centrifugal fans made of Fe360 sheet steel.

Qualicoat polyester powder coating stoved at 200ºC, with an average film thickness of 70 microns and an average heat resistance of 180ºC with peaks of 200ºC.
Straight blade impeller made of Fe360 sheet steel, statically and dynamically balanced. Impellers are painted with polyester primer that resists temperatures up to 300ºC.
Standard orientation LG270. The orientation of models 220 to 630 can be adjusted. For model sizes 710 to 1000 the orientation is fixed.

Standard asynchronous squirrel-cage motor with IP-55 protection and class F insulation. Manufactured with standard voltages: 230/400V 50Hz in 3~ motors up to 4kW and 400/690V 50Hz for higher powers. IE4 motors are available for 75kW power or higher.

Radial bladed medium pressure industrial fans

Designed for Solid Material Transport

MBZM P/R radial fans featuring straight impellers are a suitable choice for the transportation of solid materials and textile fibres. The maximum working temperature of carried air is 130°C and up to 60°C for ambient air.

Ideal for High Temperature Applications

MBZM P/R medium pressure fans are suitable for industrial applications facing higher temperatures. They feature a fully welded Fe360 sheet steel housing with a heat resistance up to 200ºC. Its steel impellers painted with polyester primer, can resist temperatures up to 300ºC.

Available Fan Types

MBZM P/R: Straight blade impeller made of Fe360 sheet statically and dynamically balanced

MBZM ATEX: ATEX rated version

Suitable Applications

Designed for inline installation, they are suitable for:

•Solid material and textile fibres transport
•Maximum working temperature: carried air: 130ºC, ambient: 60ºC

Available on Request

•Fans for 60Hz and special voltages
•2 speed motor
•C4 or C5 paint coating
•Hot dip galvanised
•Special steel (Cor-Ten A, Hardox...)
•Inox 304 (normal or electropolished finish)
•Inox 316 (normal or electropolished finish)
•Cooling wheel
•Anticaloric paint
•Reinforced housing
•Fully welded housing (waterproof)
•Insulated housing
•Split casing (for big sizes)
•Inspection door to facilitate maintenance and cleaning
•Drain plug
•Airtight axle
•Frontal foot
•Double suction flange
•Non-sparking air passage and standard motor
•Other brands of motors
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315
