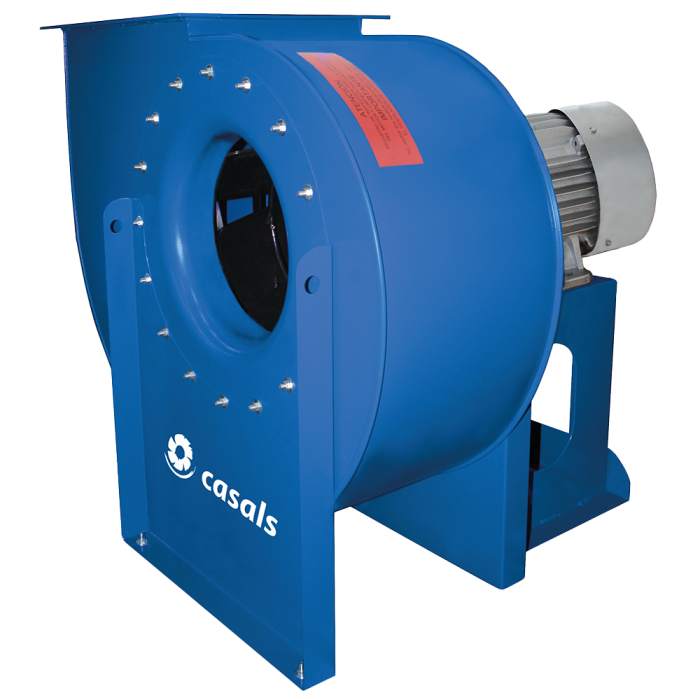

IGNEO Smoke Extraction Centrifugal Fans
Available with a C3, C4 or C5 Corrosion Resistant Finish
Manufacturing Features:
Medium pressure backward curved centrifugal fan with direct coupling.
Reinforced housing made of carbon laminated steel, with a powder coating polyester resin, RAL 5010, for enhanced corrosion protection. Finish C3.
Casing fully latched and adjustable.
Self-cleaning turbine and reinforced impeller with high-performance backward (reaction) blades made of carbon laminated steel, dynamically balanced to minimise noise and vibrations, black painted RAL 9005.
Models of size 500 and above are supplied with a front support foot, for the other models the front support foot is optional.
Inspection door to facilitate maintenance and cleaning.
IEC standardised asynchronous squirrel-cage motor offering S1 service class for continuous operation and approved 400ºC/2h for S2 service class. Manufactured with standard voltages as follows: 230/400V 50Hz for 3~ motors up to 4kW and 400/690V 50Hz for higher powers.
Enhanced Corrosive Protection for Performance in Harsh Environments
The IGNEO series of fans feature a powder coated polyester resin finish for enhanced corrosion protection. C3 rated fans are suitable for indoor areas with high humidty and some air pollution, outdoor areas such as urban and industrial atmospheres, areas with moderate sulphur dioxide pollution or coastal areas with low salinity.
IGNEO: Medium pressure centrifugal fan with backward curved impeller
•Available in the following orientations: LG0, LG45, LG90, LG135, LG180; LG225, LG270, LG315, RD0, RD45, RD90, RD135, RD180; RD225, RD270, RD315
The IGNEO is designed for the impulsion or aspiration of clean and dusty air in:
•Large buildings
•Malls
•Factories & industrial buildings
•Warehouses
•Car parks
•Catering & hospitality for commercial kitchen extraction
•Extraction of smoke
•Boilers and ovens
•Manufacture and treatment of chemical products
•Tunnels & underground stations
•Fans to work at 60Hz and special voltages
•2 speed motor
•C4-C5 paint protection coating
•Hot dip galvanised
•Fully welded housing (watertight)
•Drain plug
IEC standardised asynchronous squirrel-cage motor with (B3) support feet
•Offers S1 service class for continuous operation and approved 400ºC / 2h for service class S2
•Manufactured with standard voltages as follows: 230/400V 50Hz for 3~ motors up to 4kW and 400/690V 50Hz for higher powers
•IP-55 protection
•Electrical insulation class H
Technical Data
IGNEO fans are paired with a IEC standardised asynchronous squirrel-cage motor with S1 service class for continuous operation and approved 400ºC / 2h for service class S2. Motors offer IP-55 protection and electrical insulation class H and are manufactured with standard voltages: 230/400V 50Hz for three-phase motors up to 4kW and 400/690V 50Hz for higher powers.
