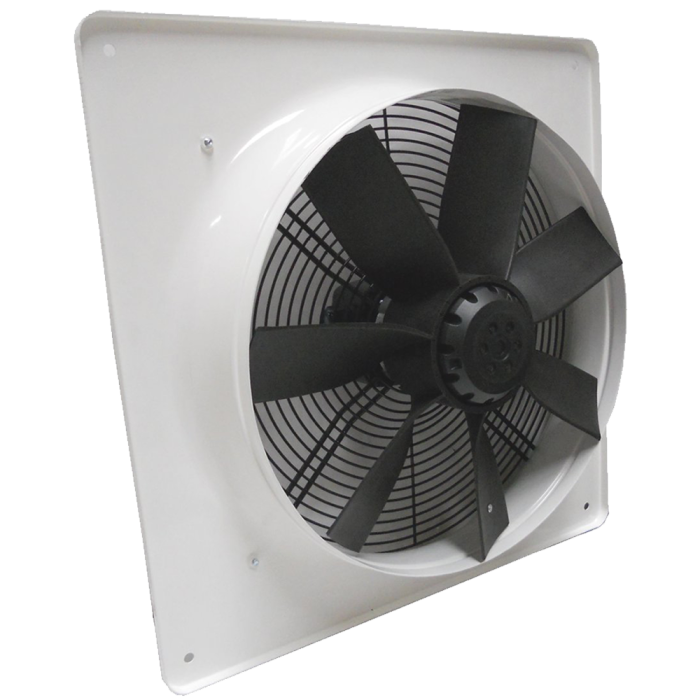

EQ & DQ Plate Axial Fans
For Large Volume Airflow Rates in Low Pressure Systems
Manufacturing Features:
Plate axial fans manufactured from galvanised sheet steel.
Electrostatically applied powder plastic coating.
Flow rates up to 33,000 m³/h.
Impeller size: 200 - 1000 mm.
Asynchronous external rotor motor.
Small depth.
Universally usable in all installation positions.
Speed is variable using auto transformers.
Aerodynamically Shaped Blades for Higher Volume Airflow Rates
EQ and DQ plate axial fans with aerodynamically shaped blades are designed for achieving higher airflow volume rates. Impellers are available in plastic, steel or aluminium construction depending on the size.
EQ range – single phase square wall mounted plate axial fans
DQ range – three phase square wall mounted plate axial fans
EQ & DQ axial fans are mounted on a square wall plate manufactured from galvanised sheet steel with an electrostatically applied powder plastic coating
The high-performance axial fans have aerodynamically shaped blades:
Size from 200 to 300: made of painted and galvanised steel sheet
Size from 315 to 630-6: made of plastic
Size from 630-4 to 1000: made of die-cast aluminium
Size from 200 to 300: motor protection class IP44
Size from 315 to 1000: motor protection class IP54
•Warehouse and building ventilation
•Heat exchangers
•Refrigeration
•Electronic enclosures
•General heating & cooling ventilation
Technical Data
Available with AC or high efficiency EC external rotor motors situated within the fan air stream, offering a compact and attractive design with thermal overload protection. Motors are available with an ingress protection rating up to IP54.
| Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
|---|---|---|---|---|---|---|---|
| GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
| GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
| GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
| GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
| GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
| GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
