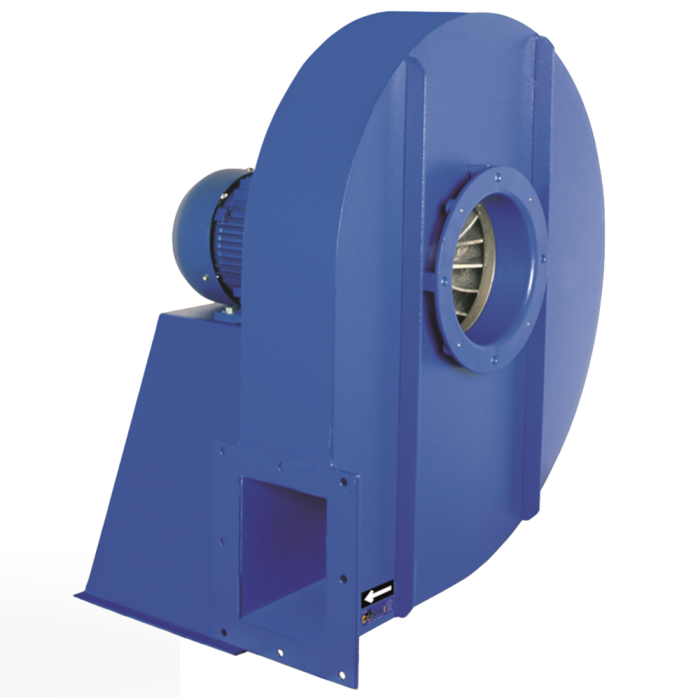

AA High Pressure Backward Curved Centrifugal Fans
Available in Standard, Stainless Steel or ATEX Versions
Manufacturing Features:
Centrifugal fan with fully welded rolling steel sheet housing.
Polyester powder finishing coat.
Impellers made from sheet steel and polyester powder coated.
Both the AA high pressure and the AA P/R have standard asynchronous squirrel cage motors that are IP55 protected and class F insulated.
Manufactured with standard voltages as follows: 230V 50Hz in 1~ motors, 230/400V 50Hz in 3~ motors up to 4kW and 400/690V 50Hz for higher powers.
Maximum working temperature of carried air is 130°C and ambient air 60°C.
The standard orientation is LG270.
Ideal for Applications Requiring Higher Pressure Rates
The AA and AA P/R range of centrifugal fans are designed for the extraction or injection of air in industrial applications where there is a requirement for higher pressures.
AA: High pressure centrifugal fan available with backward curved impellers or forward curved impellers
AA P/R: High pressure centrifugal material handling fan with a straight impeller
AAX: High pressure centrifugal fan, ATEX certified
Designed for inline installation, they are suitable for:
•Industrial applications, extraction or injection of air
•Cooling of machines and parts
•Clean air transport
•Exhaust after filters, separators and cyclones
•Pneumatic transport
•Solid material transport (except for textile fibres)
•Maximum working temperature: carried air: 130ºC, ambient 60ºC
•60Hz fans and special voltages
•2 speed motors
•Hot-dipped galvanised or stainless steel fan
•ATEX versions
•Orientation: LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315
Technical Data
The AA and AA P/R ranges of backward curved centrifugal fans are paired with a standard asynchronous squirrel-cage motor manufactured with standard voltages; 230/400V 50Hz motors up to 4kW and 400/690V 50Hz for higher powers.
Fan Type | Voltage (V) |
Frequency (Hz) |
Input Power (kW) |
Rated Current (A) |
Speed (rpm) |
Max Temp (°C) |
IP Rating (IP) |
---|---|---|---|---|---|---|---|
GKHM 355-CIG.102.5HF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 2.33 | 3.7 at 400V | 3120 | 40 | IP54 |
GKHM 400-CIG.114.6FF IE Gen3 (IE5) | 3~ 380-480 | 50 / 60 | 4.48 | 7 at 400V | 3170 | 40 | IP54 |
GKHM 450-CIG.128.6IF IE Gen3 (IE4) | 3~ 380-480 | 50 / 60 | 5.9 | 9.05 at 400V | 2950 | 40 | IP54 |
GKHM 500-CIG.143.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 7.48 | 11.4 at 400V | 2625 | 40 | IP54 |
GKHM 560-CIG.160.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 6.85 | 10.7 at 400V | 2125 | 40 | IP54 |
GKHM 630-CIG.180.6NA IE Gen3+ (IE4) | 3~ 380-480 | 50 / 60 | 5.1 | 7.88 at 400V | 1580 | 40 | IP54 |
